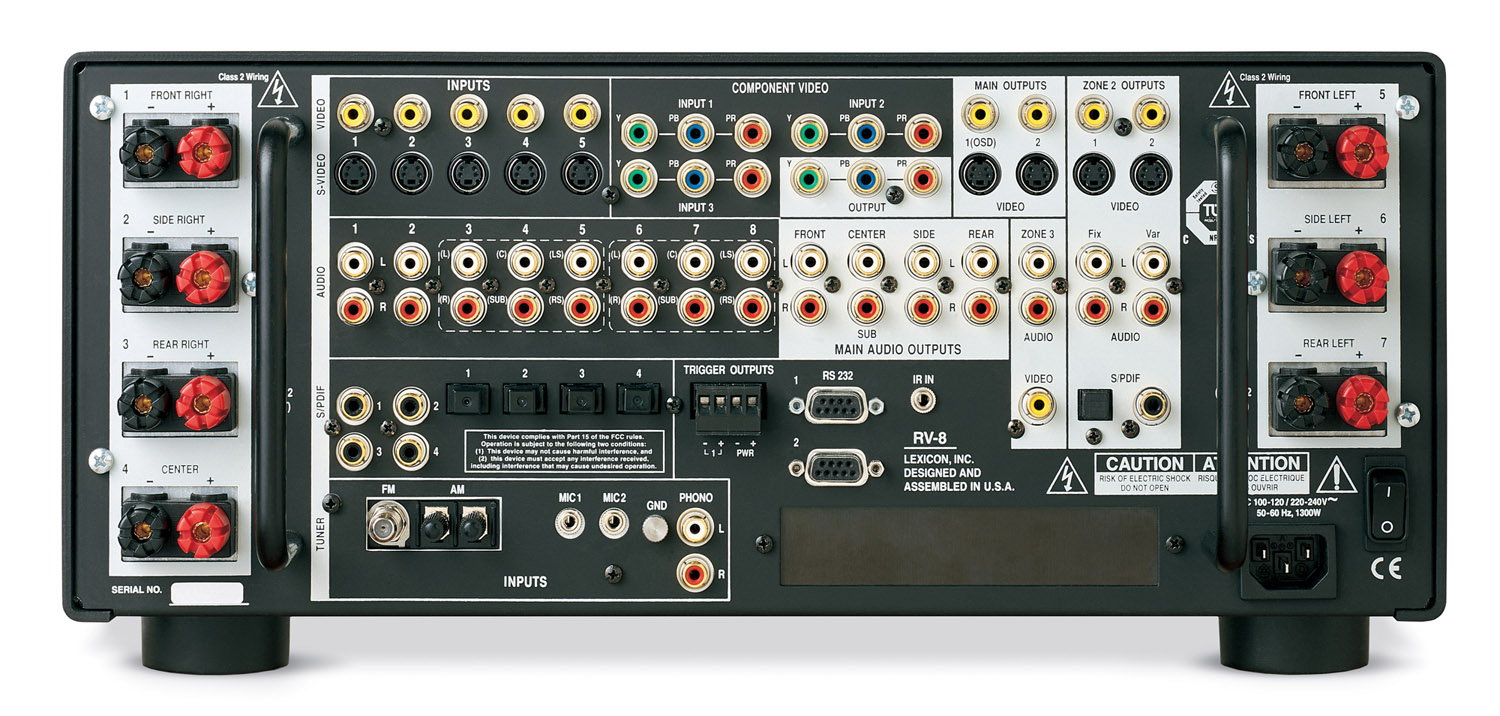

Lexicon RV8 Home Cinema Receiver Sharing much of the technology found in Lexicon’s renowned MC8 and MC12 processors, the new RV8 is far more than just an Audio / Video control centre. At the heart of the RV-8 reside two Sharc Hammerhead™ 32-Bit DSP engines possessing enormous processing power. Logic 7® decoding, bass enhancement, dialogue enhancement, auto azimuth, precision digital crossovers and bass management are some of the duties performed by these DSP engines. A third proprietary DSP engine has been totally dedicated to accurate decoding of all multi-channel audio sources. Utilising the latest versions of the critically acclaimed Logic 7® decoding circuitry, the RV-8 is capable of creating a 7.1 channel output from stereo, 5.1 and 6.1 channel sources. Unlike other decoders, Logic 7® is compatible with all input sources and requires no special encoding. In addition to Logic 7®, the RV-8 offers extensive format support including: Dolby Digital, Dolby Prologic II, DTS 24/96, THX Ultra 2 and THX Surround EX. THX Ultra 2 certification ensures the RV-8 meets the highest THX specifications. The RV-8 features an integrated 7-channel power amplifier designed to achieve high levels of power and performance. A toroidal power transformer combined with thermal and DC protection ensures exceptional performance and long term reliability. A fully configurable AM/FM stereo tuner provides 40 presets for direct selection of all favourite stations, whilst a high quality Phono stage enables direct connection for a turntable. Complimenting its audio performance the RV-8 features a HDTV compatible video switcher with up conversion for all composite video and S-video sources. Add to this a powerful learning remote control, capable of simplifying the operation of your entire system, and it becomes clear why the RV-8 is the ultimate Music and Home Theatre receiver.

Formats Supported:
Logic 7® Dolby Prologic II, Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, dts Neo 6 THX® Ultra 2 certified. Logic 7® Creates a 7.1channel output, from any input signal.

Analogue Audio Inputs:
Configurable As: 8: Stereo Pairs 5: Stereo Pairs + 1 x 5.1-channel analogue input 2: Stereo Pairs + 2 x 5.1-channel analogue inputs 5.1 Analogue Input Array - L - C - R - LS - RS - LFE

DVD-A / SACD Input Configuration:
24-bit 96 kHz Dual-Bit A>D Conversion Full Bass Management & Time Alignment Via RV-8 Pure Analogue By-Pass Option - Player Control

Turntable Input:
1: Stereo - RCA Moving Magnet - Phono Stage Pure Analogue By-Pass A>D Conversion Option

Digital Audio Inputs:
4: Coaxial - RCA 4: Optical - TosLink Sample Rates: 44.1, 48, 88.2, 96kHz Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats

Amplification - Output Power:
7 x 140W at 8 ? - All channels driven 20Hz to 20kHz

Amplification - Features:
Stable Into Reactive And Unmatched Loads Minimum Speaker Impedance - 2 ? Thermal And Overload Protection Channels 3 & 7 Assignable To Zone 2 Or 3 Outputs.

Tuner Section:
High Quality AM / FM Stereo Tuner 40 Nameable / Assignable Direct Presets

Expansion Ports / Connections:
2: 3.5mm Microphone Inputs - Future Option 1: Expansion Port cover plate

Accessories:
Pre-programmed And Learning Remote Control

Rack Mounting Option available:
RV-8: 4 Rack Units

Dimensions:
W 440mm x D 538mm x H 197mm (With Feet)

Lexicon MC4 A/V Digital Controller Drawing on Lexicon's legendary expertise in digital audio, the new MC-4 offers superior performance and value for today's music and home theatre enthusiast. Equipped with 8 configurable inputs, and 8 output channels, the MC-4 is ideal for all but the most elaborate systems. At the heart of the MC-4 are four Analogue Devices SHARC digital signal processing engines, one Cirrus Logic DSP engine, and eight 24-bit/192kHz digital-to-analogue converters - an architecture nearly identical to the MC-12. The MC-4 includes THX Ultra2 certification and dts 96/24 decoding. Amongst its impressive list of playback technologies are: Dolby Digital EX, Pro-Logic II, dts-ES, dts Neo6, and LOGIC7. Based on years of psychoacoustic research, LOGIC7 strikes a delicate balance between channel separation and surround envelopment. For music, film, and broadcast sources, LOGIC7 distinguishes between primary and background signals and processes them appropriately. Prominent sounds like a singer's voice or an airplane's roar are reproduced with stunning clarity. The signal is sent to the appropriate speaker with high channel separation, while secondary sounds like the ambient noise of a concert hall or the great outdoors are reproduced with amazing spaciousness. With LOGIC7, the listener experiences an unmatched sense of involvement. With formats such as DVD-Video, DVD-A, SACD, and High-Definition TV, the demand for input connectors has grown. The MC-4 provides compatibility with these formats, offering 3 component video inputs and 8 configurable analogue inputs. The analogue inputs can be configured as 8 stereo inputs, 5 stereo inputs plus one 5.1-channel input, or 2 stereo inputs plus two 5.1-channel inputs for separate DVD-A and SACD sources. Utilising the same intuitive on-screen menu system and user interface as the MC-12, both new users and those familiar with Lexicon will be customising and fine-tuning their MC-4 in minutes. Combined with an RT-10 disc player and CX series power amplifier, the MC-4 will serve as the core component within a high performance, high value home theatre system.

Formats Supported:
Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, Prologic II, Logic 7. THX® Ultra 2 certified. Logic 7® Creates a 7.1channel output, from any input signal. Connect 2 Independent DVD-A & SACD Sources Pure Analogue By-Pass.

Analogue Audio Inputs:
Configurable As: 8: Stereo Pairs 5: Stereo Pairs + 1: 5.1-Channel Analogue Input 2: Stereo Pairs + 2: 5.1-Channel Analogue Inputs 5.1 Analogue Input Array - L - C - R - LS - RS - LFE

Digital Audio Inputs:
4: Coaxial (RCA) 4: Optical (TosLink) Sample Rates: 44.1, 48, 88.2, 96kHz Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats

Audio Outputs:
8: Unbalanced (RCA) Front L/R - Centre - LFE - Side L/R - Rear L/R

Video Outputs: 1: Component Video - RCA 1: S-Video 1: Composite Video - RCA

Video Formats: NTSC M, PAL, and SECAM compatible

Activation Outputs:
1: Power On/Off Trigger 1: Programmable Trigger - Assignable +12VDC, 0.5 amps each; detachable screw terminals

RS-232 Serial Input/Output:
2: 9-pin D-sub connectors for system control and software upgrades

Rack Mounting Option available: MC-4: 2 Rack Units

Dimensions:
W 440mm x D 377mm x H 97mm (with Feet)

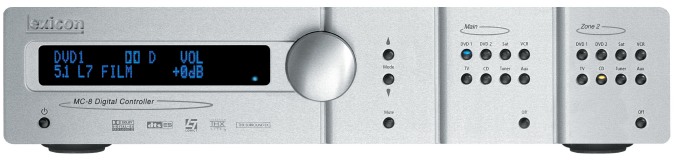

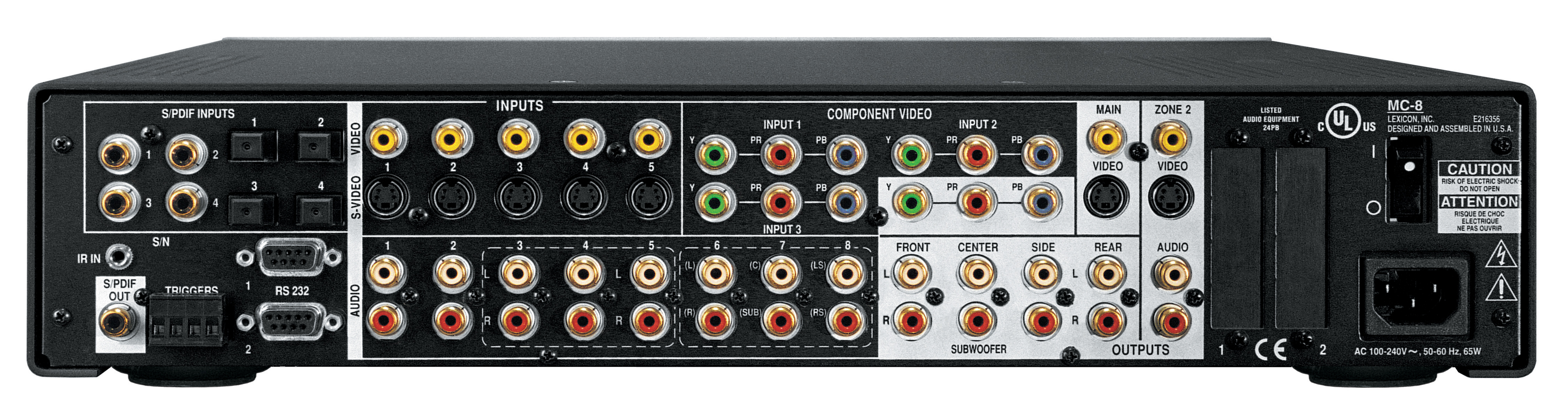

Lexicon MC8 A/V Digital Controller Based on the reference MC-12 digital controller, the MC-8 Digital Controller is perfectly suited to less complex multi-channel systems in which sound quality, picture quality, ease-of-use and reliability are still of paramount importance. Sharing the unique industrial design that identifies the new line of Lexicon home theatre products, the MC-8 is available in balanced and unbalanced versions and an optional rack mounting kit is available. At the heart of the MC-8 are four Analogue Devices SHARC Digital Signal Processing engines, one Cirrus Logic™ DSP engine, and per output, 24-bit/192kHz digital-to-analogue converters - an architecture that is nearly identical to the MC-12. As a result, the MC-12 and MC-8 share the same tremendous processing power and performance characteristics. The MC-8 includes THX® Ultra2 certification and dts 96/24 decoding, together with an impressive list of playback technologies: Dolby® Digital EX, Pro-Logic® II, dts-ES, dts Neo6, and Lexicon’s own LOGIC 7®, which creates a full 7.1-channel output signal from 2, 5.1 and 6.1-channel input sources. With the emergence of formats such as DVD-Video, DVD-Audio, Super Audio CD, and High-Definition TV, the demand for input connectors has grown. The MC-8 provides compatibility with these formats, offering three component video inputs and eight configurable analogue inputs. The analogue inputs can be configured either as eight stereo inputs, five stereo inputs and one 5.1-channel input, or two stereo inputs and two 5.1-channel inputs for separate DVD-A and SACD sources. Stereo sources can be converted into the digital domain for multi-channel processing or, along with the 5.1 channel inputs, be routed directly through the MC8 in pure analogue mode. Like the MC-12, the MC-8 provides the facility for easy software upgrades via a rear panel RS-232 port. The MC-8 also features two internal upgrade slots and two rear panel access plates, which provide the facility to augment the rear panel connections should future upgrades be made available. The MC8 is available in both balanced and unbalanced versions, depending on system requirements. The unbalanced version can be readily upgraded at a later date. Combined with the RT-10 disc player and CX series power amplifier, the MC-8 will let you rediscover your favourite music and movies and inject the audio and video media you thought you knew with a new power to entertain.

Formats Supported:
Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, Prologic II, Logic 7. THX® Ultra 2 certified. Logic 7® Creates a 7.1channel output, from any input signal. Connect 2 Independent DVD-A & SACD Sources Pure Analogue By-Pass.

Analogue Audio Inputs:
Configurable As: 8: Stereo Pairs 5: Stereo Pairs + 1: 5.1-Channel Analogue Input 2: Stereo Pairs + 2: 5.1-Channel Analogue Inputs 5.1 Analogue Input Array - L - C - R - LS - RS - LFE

Digital Audio Inputs:
4: Coaxial - RCA 4: Optical - TosLink Sample Rates: 44.1, 48, 88.2, 96kHz Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats

RS-232 Serial Input/Output:
2: 9-pin D-sub connectors for system control and software upgrades

Expansion Ports:
2: Internal Expansion Ports

Rack Mounting Option available:
MC-8: 2 Rack Units

Dimensions:
W 440mm x D 377mm x H 97mm (with Feet)

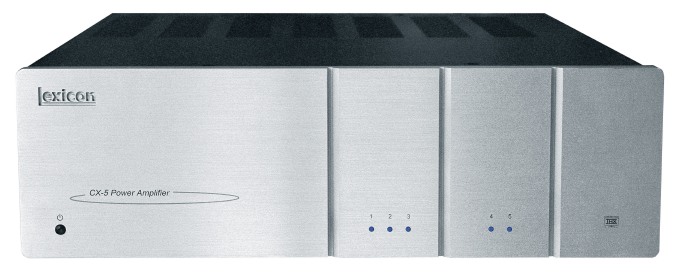

Lexicon CX5 Power Amplifier Being identical in performance to the CX 7, the CX 5 is ideal where the additional channels are not required, and the higher output of the LX5 is not warranted. The CX 5 provides 140 - Watts for each of its five channels. All channels are capable of driving speaker impedances down to 2 Ohm. Complemented by gold-plated speaker output connectors, the rear panel includes selectable balanced or unbalanced audio input via XLR and RCA connectors respectively. A trigger input connector allows the CX 5 to be controlled by a preamp/processor such as the MC-12 or MC-8. In addition, a ground lift switch for each channel can be used to eliminate audible hum caused by multiple grounding paths. With THX Ultra2 Certification, the CX 5 is certified to meet the highest THX standards. Advanced thermal, current, DC, and speaker protection further guarantee exceptional performance under even the most extreme operating conditions. Add to this incredible power and wide-ranging flexibility, and the CX 5 amplifier is at home in the most sophisticated and demanding Home Theatres.

Overview:
THX Ultra 2. Multi-Channel Power Amplifier.

Audio Inputs:
5: Unbalanced - RCA 5: Balanced - XLR

Speaker Outputs:
5: Gold Plated Four Way Terminals

Output Power:
5 x 140W at 8 Ohm , all channels driven 20Hz to 20kHz

Minimum Speaker Impedance:
2 Ohm

Frequency Response:
20Hz to 20kHz ±0.1dB 10Hz to 100kHz +0.5/-3dB

Features:
Stable into reactive and unmatched loads. Trigger Input:12V DC ±10%. Screw terminal demountable Ground Lift switch.

Rack Mounting Option:
CX5: 3 Rack Units

Dimensions:
W 439mm x D 502mm x H 155mm (With Feet)

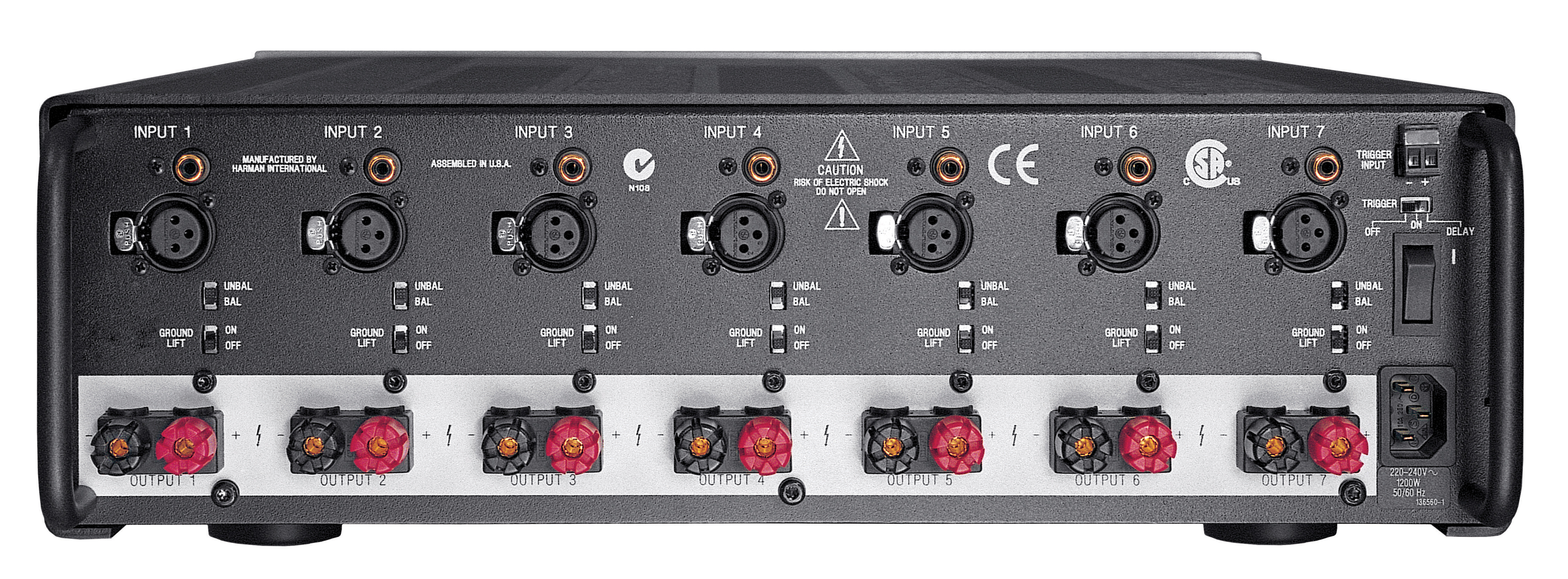

Lexicon CX7 Power Amplifier Designed for systems in which the high power output of the LX amplifiers is not essential, the CX7 provides 140 Watts for each of its seven channels. All channels are capable of driving speaker impedances down to 2 Ohms. The CX7’s rear panel provides balanced or unbalanced audio inputs via XLR and RCA connectors respectively. Gold-plated speaker output connectors ensure a clean signal transfer from the amplifier to the loudspeakers, complemented by a ground lift switch to eliminate audible hum, which may be the result of multiple grounding paths in complex systems. For added convenience, a trigger input allows the CX7 to be controlled by a preamp/processor such as the MC-12 or MC-8. THX® Ultra2 Certification, combined with advanced thermal, current, DC, and speaker protection, guarantees exceptional performance under the most extreme operating conditions. With substantial power and wide-ranging flexibility, the CX7 amplifier is designed to meet the challenges of the most sophisticated and demanding home theatre systems.

Overview:
THX Ultra 2. 7 Channel Power Amplifier.

Audio Inputs:
7: Unbalanced - RCA 7: Balanced - XLR

Speaker Outputs:
7: Gold Plated Four Way Terminals

Output Power:
7 x 140W at 8 ?, all channels driven 20Hz to 20kHz

Minimum Speaker Impedance:
2 Ohm.

Frequency Response:
20Hz to 20kHz ±0.1dB 10Hz to 100kHz +0.5/-3dB

Features:
Stable into reactive and unmatched loads. Trigger Input:12V DC ±10%. Screw terminal demountable Ground Lift switch.

Rack Mounting Option:
CX7: 3 Rack Units

Dimensions:
W 439mm x D 502mm x H 155mm (with Feet)

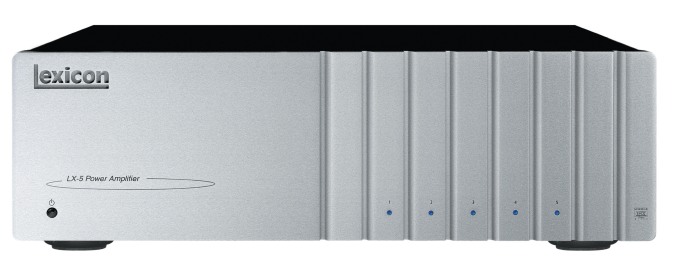

Lexicon LX5 Power Amplifier The LX5 amplifier has been designed to meet the standards of performance and sound quality demanded by Lexicon’s digital controllers. With THX® Ultra2 certification, the LX5 amplifier offers high power output that can be configured for almost any home theatre installation. Providing precisely the same sound quality as the LX7, the LX5 is ideal for five-channel systems. The LX5 can be utilised as either a five-channel or a three-channel amplifier depending on system requirements. As a five-channel amplifier the LX5 provides 5 x 200W per channel, whilst in bridged mode, four channels are combined to provide 2 x 400W with the remaining channel providing 200W. Heavy-duty loudspeaker outputs and selectable balanced or unbalanced audio inputs are also available. A rear panel trigger input allows the LX5 to be activated by external devices. A ground lift switch helps eliminate audible hum caused by multiple grounding paths in the system. Built to Lexicon standards, the LX5 power amplifier raises the bar for home theatre amplifiers. A seductive combination of sound quality, power, flexibility and reliability make the LX5 amplifier at home in virtually any system.

Overview:
Reference THX Ultra 2. 5 Channel Power Amplifier.

Audio Inputs and Outputs:
5: Unbalanced - RCA 5: Balanced - XLR (Including 1/4" T/R/S)

Speaker Outputs:
5: Gold Plated Four Way Terminals

Audio Performance:
Bridged/Individual, Amplifier performance specifications are identical in individual & bridged modes. Except Output Power & Minimum Speaker Impedance. Bridged Mode includes channels 1 & 2 and 3 & 4 only.

Output Power:
Un-bridged: 5 x 200W at 8 Ohm , all channels driven 20Hz - 20kHz Bridged: 2 x 400W at 8 Ohm + 1 x 200W at 8 ? , all channels driven 20Hz - 20KHz

Minimum Speaker Impedance: Individual Mode: 2 Ohm Bridged Mode: 4 Ohm

Frequency Response:
20Hz - 20kHz ±0.1dB 10Hz - 100kHz, +0.5/-3dB

Features:
Forced Fan cooling. Stable into reactive and mismatched loads. Trigger Input, 12VDC ±10%. Screw Terminal Demountable

Rack Mounting Option available:
LX5: 3 Rack Units

Dimensions:
W 440mm x D 483mm x H 144mm (With Feet)

Lexicon LX7 Power Amplifier The LX7 amplifier has been designed to meet the standards of performance and sound quality demanded by Lexicon’s digital controllers. With THX® Ultra2 certification, the LX7 amplifier offers high power output that can be configured for almost any home theatre installation. The LX7 can be utilised as either a seven-channel or five-channel amplifier depending on system requirements. As a seven-channel amplifier the LX7 provides 200W per channel, whilst in bridged mode, four channels can be combined to provide 2 x 400W leaving the remaining three channels at 200W each. Heavy-duty loudspeaker outputs and selectable balanced or unbalanced audio inputs are also available. A rear panel trigger input allows the LX7 to be activated by external devices. A ground lift switch helps eliminate audible hum caused by multiple grounding paths in the system. Built to Lexicon standards, the LX7 power amplifier establishes a new benchmark for home theatre amplifiers in its price class. An unbeatable combination of sound quality, power, flexibility and reliability make the LX7 amplifier at home in virtually any system.

Overview:
Reference THX Ultra 2. 7 Channel Power Amplifier.

Audio Inputs and Outputs:
7: Unbalanced - RCA 7: Balanced - XLR (Including 1/4" T/R/S)

Speaker Outputs:
7: Gold Plated Four Way Terminals

Audio Performance:
Bridged/Individual, Amplifier performance specifications are identical in individual & bridged modes. Except Output Power & Minimum Speaker Impedance. Bridged Mode includes channels 1 & 2 and 3 & 4 only.

Output Power:
Un-bridged: 7 x 200W at 8 Ohm , all channels driven 20Hz - 20kHz Bridged: 2 x 400W at 8 Ohm + 3 x 200W at 8 ? , all channels driven 20Hz - 20KHz

Minimum Speaker Impedance:
Individual Mode: 2 Ohm Bridged Mode: 4 Ohm

Frequency Response:
20Hz - 20kHz ±0.1dB 10Hz - 100kHz, +0.5/-3dB

Features:
Forced Fan cooling. Stable into reactive and mismatched loads. Trigger Input, 12VDC ±10%. Screw Terminal Demountable

Rack Mounting Option available:
LX7: 3 Rack Units

Dimensions:
W 440mm x D 483mm x H 144mm (With Feet)
