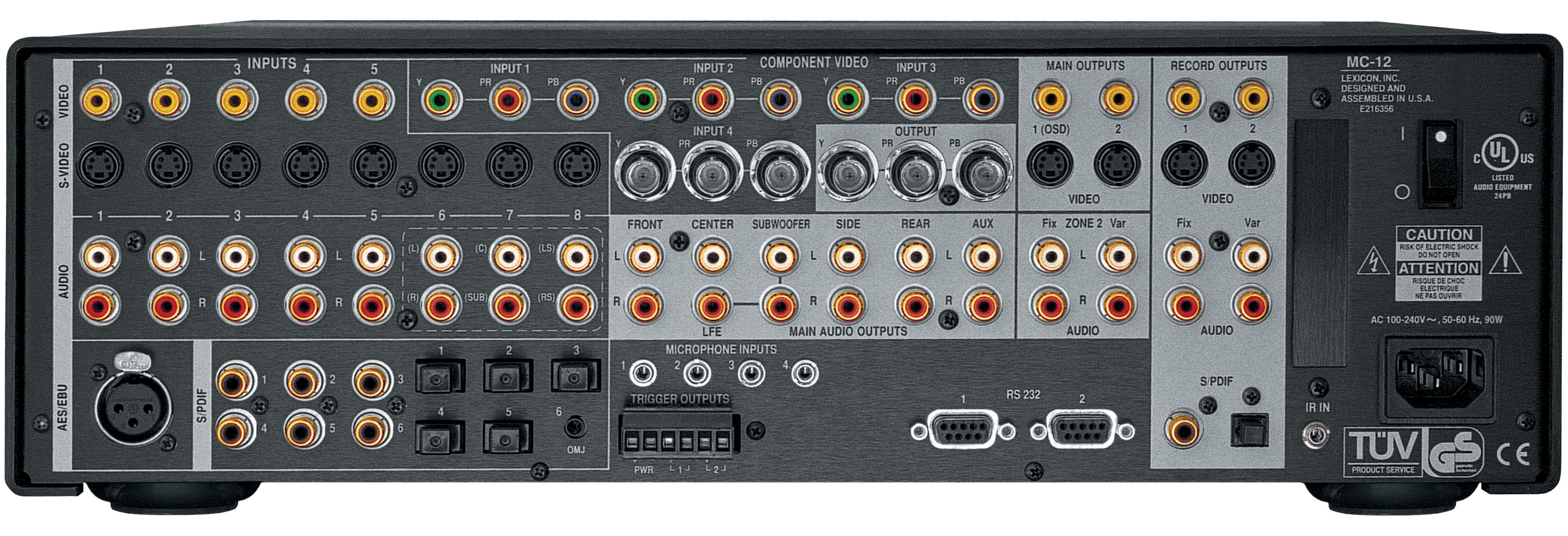

Click on the image below to view the back of the Amplifier.
SPECIFICATIONS.
Overview of MC12 V3:

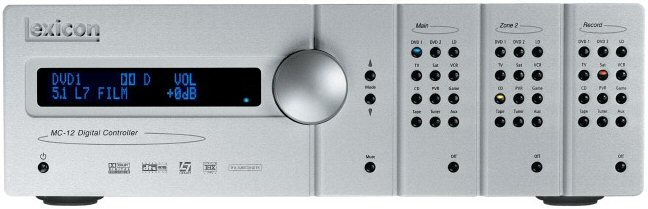

THX Ultra 2 Reference 12 Channel Digital Audio & Video Controller.
Unbalanced Outputs
Formats Supported:
Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, Prologic II, Logic 7.
THX® Ultra 2 certified.
Logic 7® Creates a 7.1channel output, from any input signal.
Pure Analogue By-Pass.
Unique DVD-A & SACD input configuration with full Bass Management & Time Alignment.
Automatic Calibration:
Output Levels
Time Alignment - Delay
Requires Optional Microphones
Analogue Audio Inputs:
RCA Inputs Configurable As:
8: Stereo Pairs
5: Stereo Pairs + 1 x 5.1-channel analogue input
5.1 Analogue Input Array - L - C - R - LS - RS - LFE
4: Mic Inputs for Auto Calibration - Microphones Optional
Digital Audio Inputs:
6: Coaxial - RCA
5: Optical - TosLink
1: Optical - Optical Mini-Jack
1: AES/EBU
Sample Rates: 44.1, 48, 88.2, 96kHz
Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats
Main Zone Audio Outputs:
12: Unbalanced - RCA
Front L/R - Centre - LFE - Subwoofer L/R - Side L/R - Rear L/R - Auxiliary L/R
Zone 2 Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable
Record Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable
1: Coaxial - RCA
1: Optical - TosLink
DSP Engines:
4: Sharc 32-Bit Floating Point DSP Engines
1: Cirrus Logic DSP Decoding Engine
1: Proprietary DSP Engine - V3
Video Inputs:
1: Component Video - BNC
3: Component Video - RCA
8: S-Video - Y/C
5: Composite Video - RCA
Video Switching:
Ultra-Wide Bandwidth. HDTV Compatible.
Broadcast Standard Switching.
Dimensions:
W 440mm x D 377mm x H 144mm (With Feet)
