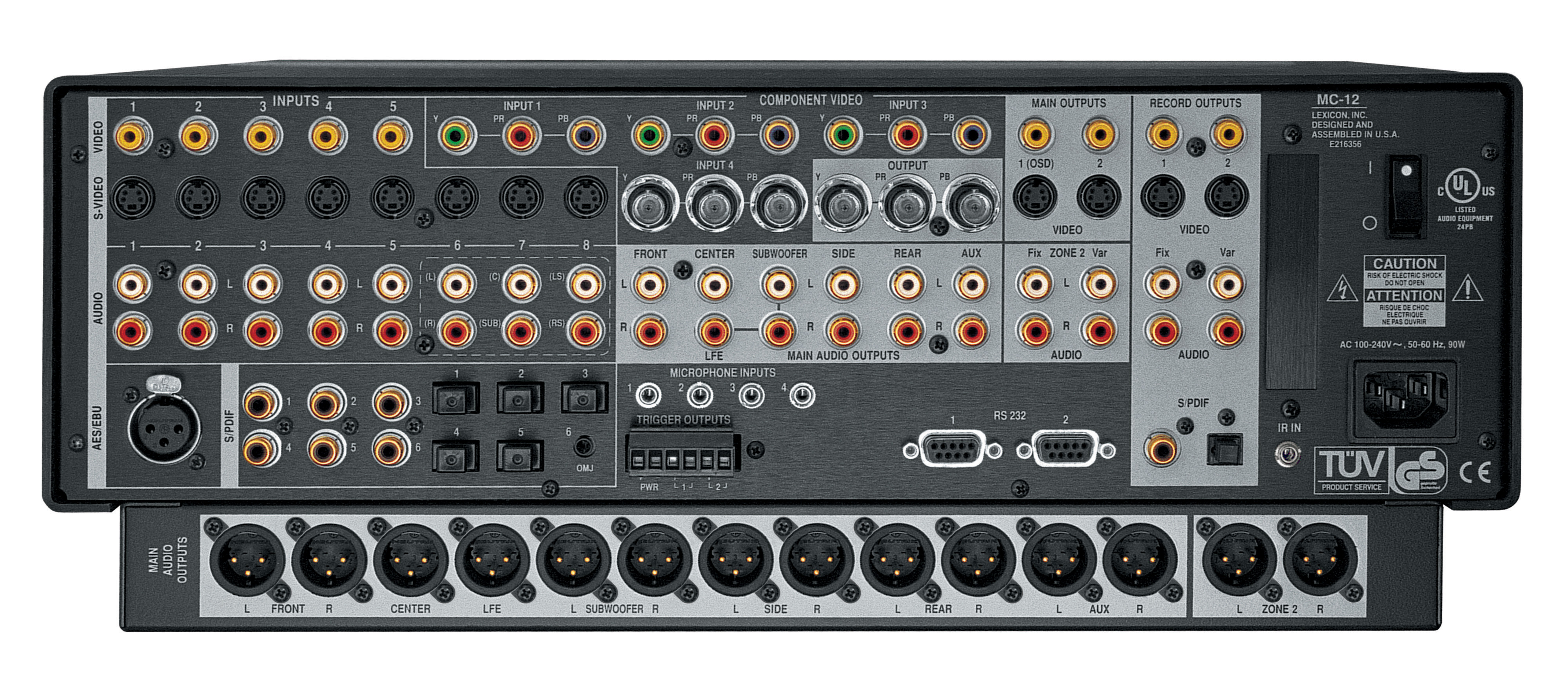

Click on the image below to view the back of the Amplifier.
SPECIFICATIONS.

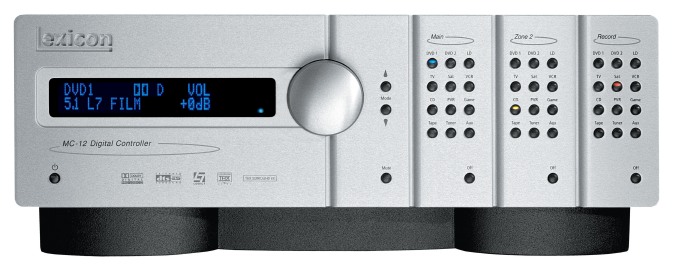

Overview of MC12B V3:
THX Ultra 2 Reference 12 Channel Digital Audio & Video Controller.
Balanced And Unbalanced Outputs
Formats Supported:
Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, Prologic II, Logic 7.
THX® Ultra 2 certified.
Logic 7® Creates a 7.1channel output, from any input signal.
Pure Analogue By-Pass.
Unique DVD-A & SACD input configuration with full Bass Management & Time Alignment.
Digital Audio Inputs:
6: Coaxial - RCA
5: Optical - TosLink
1: Optical - Optical Mini-Jack
1: AES/EBU
Sample Rates: 44.1, 48, 88.2, 96kHz
Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats
Main Zone Audio Outputs:
12: Balanced - XLR
Front L/R - Centre - LFE - Subwoofer L/R - Side L/R - Rear L/R - Auxiliary L/R
12: Unbalanced - RCA
Front L/R - Centre - LFE - Subwoofer L/R - Side L/R - Rear L/R - Auxiliary L/R
Zone 2 Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable
1: Balanced Analogue - Stereo XLR - Variable
Record Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable
1: Coaxial - RCA
1: Optical - TosLink
DSP Engines:
4: Sharc 32-Bit Floating Point DSP Engines
1: Cirrus Logic DSP Decoding Engine
Video Inputs:
1: Component Video - BNC
3: Component Video - RCA
8: S-Video - Y/C
5: Composite Video - RCA
Video Outputs:
1: BNC Component Video - Main Zone
4: S-Video 2: Main - 2: Zone 2
4: Composite Video 2: Main - 2: Zone 2
Video Formats:
NTSC M, PAL, and SECAM compatible
RS-232 Serial Input/Output:
2: 9-pin D-sub connectors for system control and software upgrades
Expansion Ports:
3: Internal Expansion Ports
V3 Occupies 1 Expansion Port
Rack Mounting Option available:
MC-12B: 4 Rack Units
Dimensions:
W 440mm x D 377mm x H 171mm (With Feet
