SPECIFICATIONS.

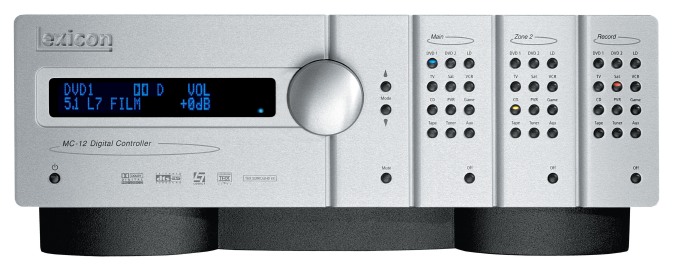

Overview of MC12B V4:
THX Ultra 2 Reference 12 Channel Digital Audio & Video Controller. Fully Automatic Calibration And Room Equalisation Balanced And Unbalanced Outputs

Formats Supported:
Dolby® Digital, THX Surround EX, dts®, dts-ES 6.1, dts 24-96KHz, Prologic II, Logic 7. THX® Ultra 2 certified. Logic 7® Creates a 7.1channel output, from any input signal. Pure Analogue By-Pass. Unique DVD-A & SACD input configuration with full Bass Management & Time Alignment.

Automatic Calibration:
Output Levels Time Alignment - Delay Requires Optional Microphones

V4 Room EQ:
Fully Automatic Room Correction Correct Up to Ten Channels Including Subwoofers All Corrections Made Within The Digital Domain Multi-Point Microphone Analysis - Microphones Not Included

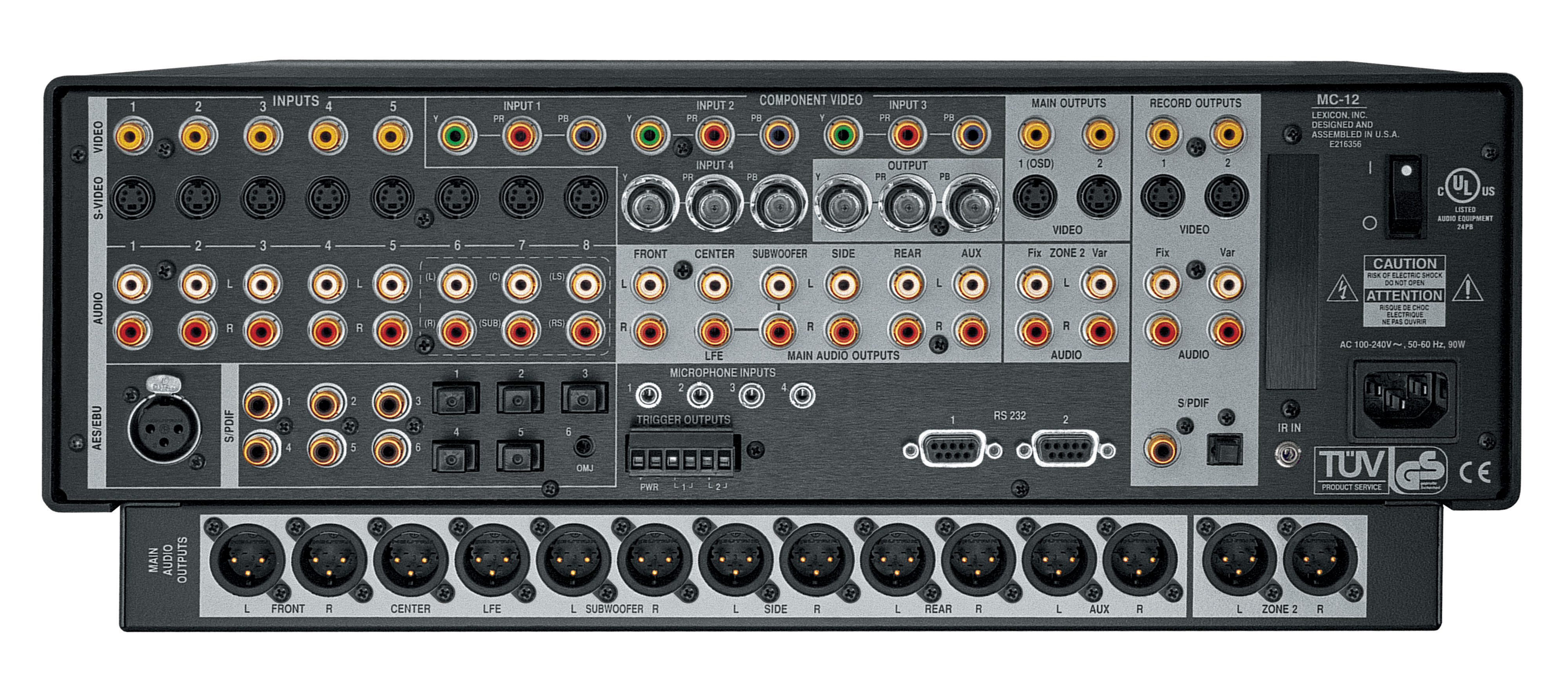

Analogue Audio Inputs:
RCA Inputs Configurable As: 8: Stereo Pairs 5: Stereo Pairs + 1 x 5.1-channel analogue input 5.1 Analogue Input Array - L - C - R - LS - RS - LFE 4: Mic Inputs for Auto Calibration - Microphones Optional

Digital Audio Inputs:
6: Coaxial - RCA 5: Optical - TosLink 1: Optical - Optical Mini-Jack 1: AES/EBU Sample Rates: 44.1, 48, 88.2, 96kHz Accepts: 16-24 Bit PCM audio, Dolby Digital, dts and dts-ES Discrete data formats

Main Zone Audio Outputs:
12: Balanced (XLR) Front L/R, Centre, LFE, Subwoofer L/R, Side L/R, Rear L/R, Auxiliary L/R 12: Unbalanced - RCA Front L/R - Centre - LFE - Subwoofer L/R - Side L/R - Rear L/R - Auxiliary L/R

Zone 2 Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable 1: Balanced Analogue - Stereo XLR - Variable

Record Audio Outputs:
2: Analogue - Stereo RCA - 1: Fixed - 1: Variable 1: Coaxial - RCA 1: Optical - TosLink

Digital Architecture:
Analogue-to-Digital Conversion - 24-bit, 96kHz, Dual-Bit Architecture Digital-to-Analogue Conversion- 24-bit, 44.1 to 192kHz, Multi-Bit Architecture - Operates In Dual-Mono Mode Analogue-to-Digital Conversion - Record Zone - 24-bit, 44.1 to 96kHz, Dual-Bit Architecture

DSP Engines:
4: Sharc 32-Bit Floating Point DSP Engines 1: Cirrus Logic DSP Decoding Engine 1: Proprietary DSP Engine - V3 1: Proprietary DSP Engine - V4

Video Inputs:
1: Component Video - BNC 3: Component Video - RCA 8: S-Video - Y/C 5: Composite Video - RCA

Video Switching:
Ultra-Wide Bandwidth. HDTV Compatible. Broadcast Standard Switching.

Video Outputs:
1: BNC Component Video - Main Zone 4: S-Video 2: Main - 2: Zone 2 4: Composite Video 2: Main - 2: Zone 2

Video Formats:
NTSC M, PAL, and SECAM compatible

Activation Outputs:
1: Power On/Off Trigger 2: Programmable Triggers Assignable +12VDC, 0.5 amps each; detachable screw terminals

RS-232 Serial Input/Output:
2: 9-pin D-sub connectors for system control and software upgrades

Expansion Ports:
3: Internal Expansion Ports V4 Occupies 2 Expansion Ports

Rack Mounting Option Available:
MC-12B: 4 Rack Units

Dimensions:
W 440mm x D 377mm x H 171mm (With Feet)
