TURNTABLE PHONO PRE-AMPS

 PA1 PHONO AMPLIFIER

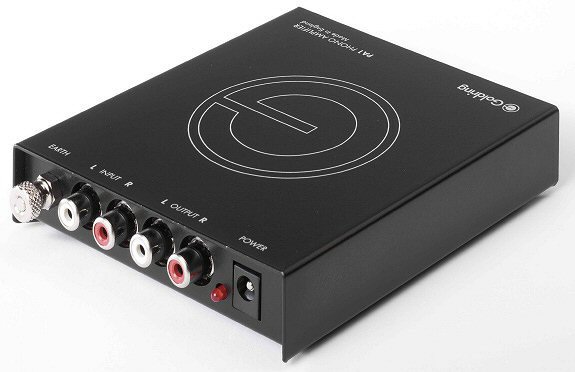

Goldring Phono Pre Amp
Only 26mm high, the PA1 fits neatly under a Goldring GR1.2 or GR2 turntable.


PA1 PHONO AMPLIFIER
Many modern amplifiers don’t have a turntable input. The PA1 solves this problem by amplifying the signal from a moving magnet cartridge to a level suitable for the line inputs of an amplifier such as Auxiliary, Tape, Tuner etc.

Combining audiophile grade components with an exceptional adherence to RIAA specification, the PA1 delivers truly outstanding sonic performance and value.

In addition, the PA1 can also be used to upgrade the performance of most standard amplifier turntable inputs.


 SPECIFICATIONS
Input sensitivity:
2mV for 200mV output

Input loading:
47K ohm in parallel with 100pF

Maximum input level:
65mV @ 1kHz

Minimum output load impedance:
10K Ohm

Power requirements:
24VAC @ 27.5mA

Frequency response:
(50K ohm load) 15Hz(-3dB) to 100kHz (-0.5dB)

RIAA accuracy:
(50K ohm load) ±0.5dB 40Hz to 100kHz


 POWER SUPPLY SPECIFICATIONS

Input Output
UK 230V ~ 50Hz 0.025A 24V ~ 100MA AC
EU (Euro 2 pin) 230V ~ 50Hz 0.025A 24V ~ 100MA AC
UL (American) 115V ~ 60Hz 5W 24V ~ 100MA AC
