Performa Speakers.

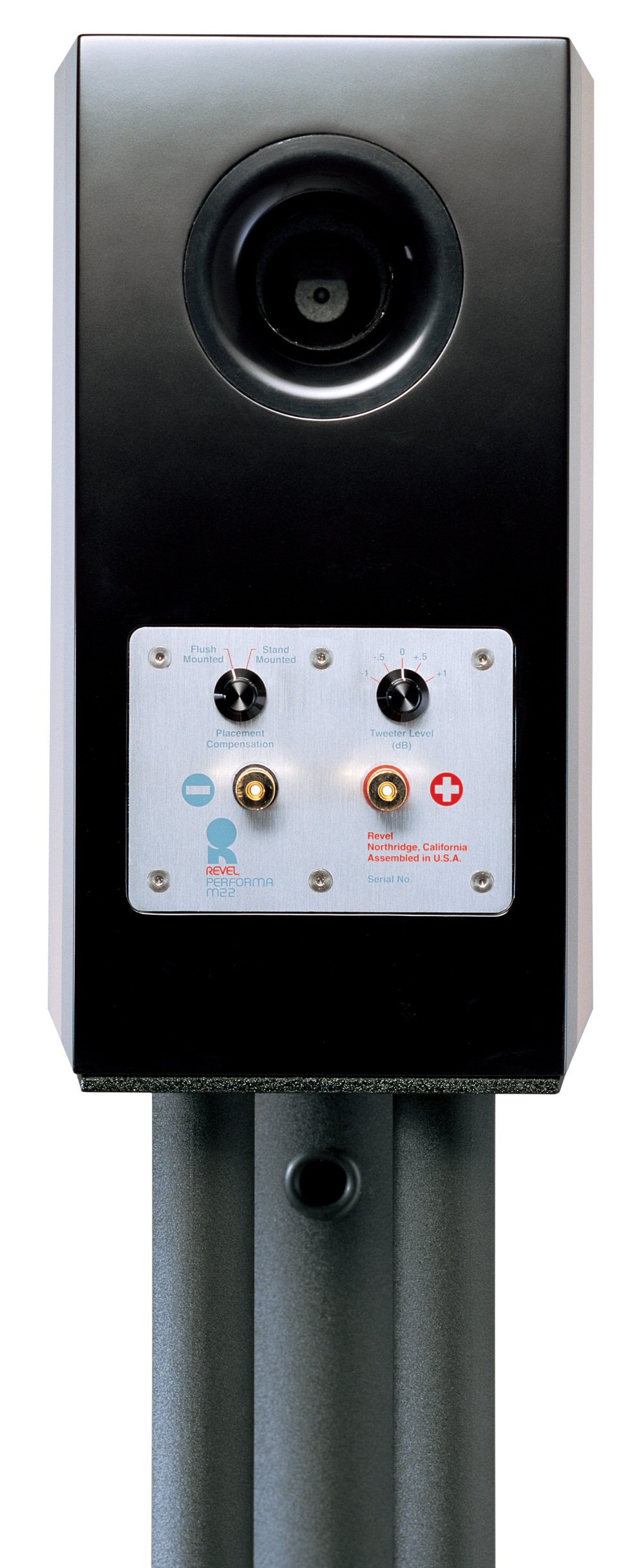

Click on the image below to view the back of the speaker.
|

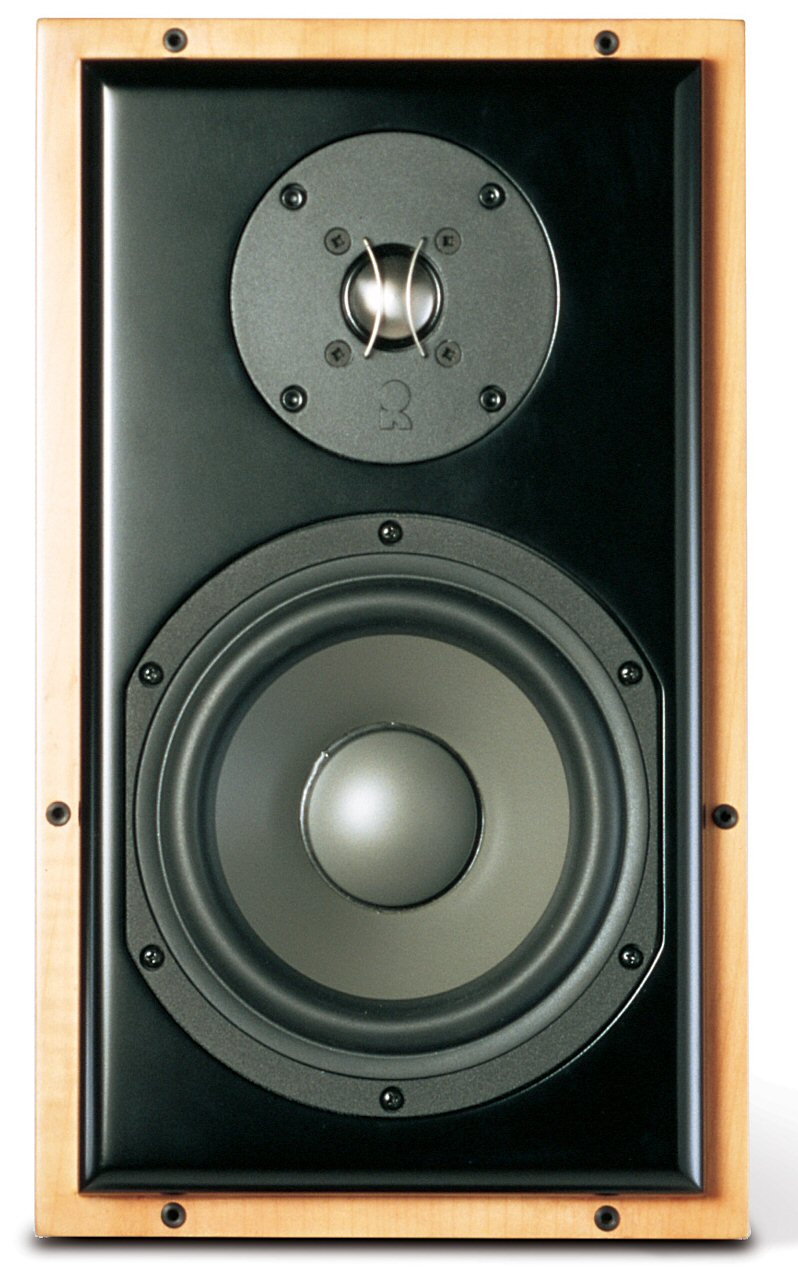

The Performa M22 Loudspeaker
Reviewed as "Class-A sound quality from a small loudspeaker," the Performa M20 set the standard for state-of-the-art compact monitor performance. The new M22 continues to elevate the performance standard, featuring newly developed driver technology shared with the F32 floor-standing speaker system, along with a new slim cabinet design that allows tremendous placement versatility and high visual appeal.
Featuring a high power, magnetically-shielded 6.5-inch cast-frame woofer incorporating Revel’s exclusive Organic Composite Cone technology along with a substantial 2-inch flat-wire edge-wound voice coil, the M22 woofer also includes a proprietary Dual Neodymium magnetic motor system for tremendous dynamic range and freedom from compression. This remarkable driver also features sophisticated magnetic flux focusing systems, comprising a copper modulation control cap as well as an aluminum flux stability ring for unparalleled magnetic linearity and incredibly low distortion.
Treble frequencies are ably reproduced by our exclusive pure, magnetically-shielded 1-inch titanium wide dispersion dome tweeter, featuring an advanced co-polymer surround and ferro-fluid cooling, providing true pistonic behavior for reproduction beyond the limits of human hearing.
Internally, the M22 features physically separated high-order crossover boards that incorporate precise fixed-resistor, high-frequency level trimming, as well as a boundary compensation system that allows for optimum timbral response with either stand mounting or shelf mounting. During production, each M22 is individually calibrated to match the production reference standard to within a fraction of a decibel, assuring outstanding consistency and timbral accuracy.
The elegant cabinetry features gently tapered sides that visually suggest an even smaller appearance and is finished in a choice of Natural Cherry, Maple or Black Ash fine wood veneers. A beautifully designed optional black pedestal elevates the M22 to an ideal height and aesthetically matches the optional C32 pedestal as well.
|
SPECIFICATIONS.
Sensitivity: 85dB SPL, with 2.83V rms @ 1m
(4 pi anechoic)
Impedance: 6.4 Ohms (nominal), 4.8 Ohms (minimum @160Hz)
Filters (crossover): 2-way, high-order, @2.2kHz
In-room Frequency Response: ±1.0dB from 46Hz to 16kHz
In-room response relative to target response: ±0.75dB from 46Hz to 20kHz
First-reflections Response: ±1.5dB from 45Hz to 15kHz
Listening Window Response: ±1.5dB from 45Hz to 16kHz
Low Frequency Extension: -10dB @ 36Hz
-6dB @ 41Hz
-3dB @ 48Hz
Dimensions: width: 8.625" (21.9cm)
height: 14.5" (36.8cm)
depth: 11.875" (30.2cm) including grille
With optional pedestal
width: 8.625" (21.9cm)
height: 39.937" (101.4cm)
depth: 11.375" (28.9cm) including grille
Shipping Weight: 24lbs. (10.8kg) net (each, without packing)
With optional pedestal
42lbs (18.9kg) net (each, without packing)
|
