Revel Performa Speakers

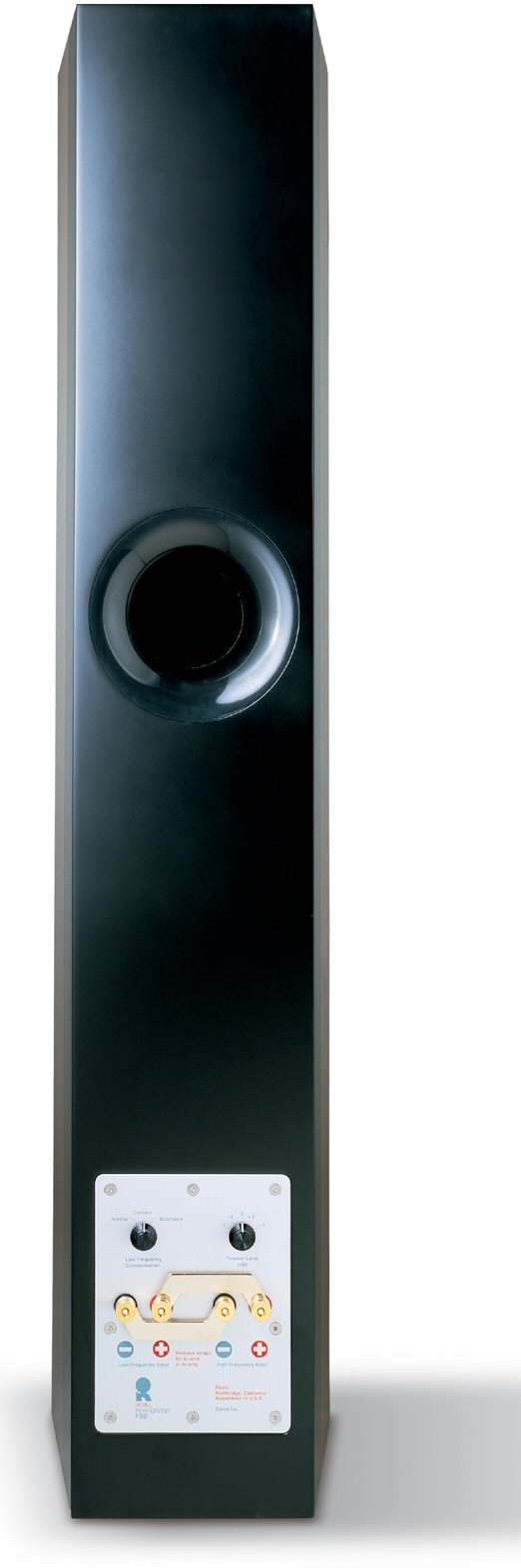

Click on the image below to view the back of the speaker.
|

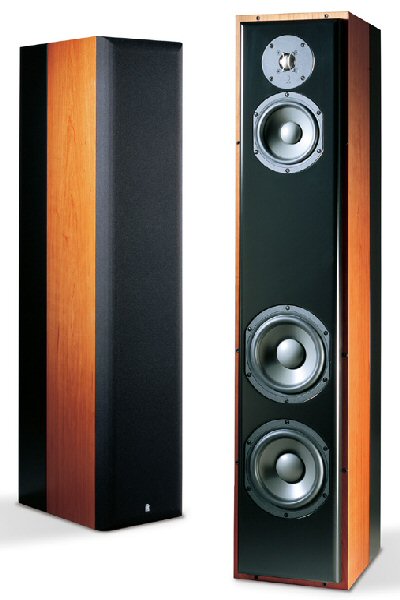

The Performa F32 Floor-Standing Loudspeakers
The new F32 combines large floor-standing loudspeaker performance in an elegant slim cabinet design with a small “footprint” for maximum placement versatility and high visual appeal. It features four new, magnetically-shielded proprietary drivers that offer a host of improvements in vital areas such as dynamics, distortion, and dynamic compression along with improved low-frequency reproduction and wider placement versatility.
Featuring two high-performance 6.5-inch woofers that provide the surface area of a much larger single driver and produce authoritative, highly-detailed bass response. Exclusive Organic Ceramic Compound cone material provides tremendous output capability and freedom from dynamic range-induced colorations, aided by the Dual Neodymium magnetic motor system that optimizes linearity over a wide operating range.
These remarkable drivers also feature a 2-inch high power-handling flat-wire edge-wound voice coil for unprecedented power handling capability and low distortion.
Virtually identical to the woofer except for size, the 5-inch midrange driver is optimized for the crucial midrange frequencies, providing remarkably smooth timbral response and wide dynamic range with high output capability. The treble frequencies are faithfully reproduced by a newly-developed 1-inch pure titanium dome tweeter that features true pistonic behavior over its entire operating range and incorporates ferro-fluid cooling.
Nearly half the width of its predecessor, the F32 cabinetry features tapered sides that provide a svelte appearance and improved placement flexibility, aided by a Contour setting for various in-room acoustical situations as well as a Boundary setting that allows for near-wall and in-wall installations.
Each F32 is carefully calibrated to match the production reference standard to within a fraction of a decibel and is superbly finished in a choice of Maple, Natural Cherry or Black Ash natural wood veneer.
|
SPECIFICATIONS.
Sensitivity: 86dB SPL, with 2.83V rms @ 1m
(4 pi anechoic)
Impedance: 6.5 Ohms (nominal), 3.7 Ohms (minimum @ 260Hz)
Filters (crossover): 3-way, high-order @ 190Hz and 2.7kHz
In-room Frequency Response: ±1.0dB from 33Hz to 16kHz
In-room response relative to target response: ±0.75dB from 34Hz to 20kHz
First-reflections Response: ±1.0dB from 33Hz to 15kHz
Listening Window Response: ±1.5dB from 31Hz to 16kHz
Low Frequency Extension: -10dB @ 24Hz
-6dB @ 26Hz
-3dB @ 30Hz
Dimensions: width: 8.75" (22.2cm)
height: 41.5" (105.4cm)
depth: 15.25" (38.7cm) - including grille.
Spikes add 1.5" (3.8cm) to height.
Shipping Weight: 70lbs. (31.7kg) net (without packaging)
|
