QED ROOMLINK STARTER PACK RL-SP3
This product provides a wired solution for routing I.R.(Infra-Red) commands from different locations within a home, back to a central point where the equipment to be controlled is located. This will then permit such equipment as a video recorder, satellite receiver and hi-fi system etc., to be controlled from various remote locations. This is achieved by firing the original equipment’s remote control handset (or pre-programmed or learning equivalent) at a suitably positioned WM22 I.R. Sensor.

The command codes are routed via a wired link to the Roomlink Driver (normally located next to the source equipment) and in turn, to an I.R, Emitter which “repeats” the codes enabling the source equipment to receive and respond to those commands.

We recommend that each WM22 is wired back to the Roomlink Driver using simple four core telephone wire or screened Cat-5 cable with the drain wire connected to the screen terminal. If that is inconvenient, or more than four I.R. Sensors are required, it is possible to daisy chain extra Sensors.


NOTE: A very small number of manufacturers codes will not pass through the IR link. Always test the operation before laying cables etc.

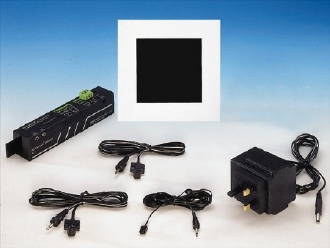

Roomlink Starter pack 3 consists of:
* 1 x Roomlink Driver
* 2 x SL-DE Double Emitter Packs
* 2 x SL-FE Flood Emitter
* 1 x 12 volt Power Supply (UK only)
* 1 x WM22 Roomlink Eye

NB: Additional WM22 Roomlink Eyes Can Be Purchased Separately If Required For Other Rooms
