PRIMARE TUNERS

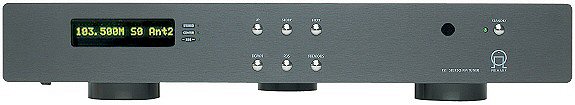

PRIMARE T21 FM/RDS TUNER


PRIMARE T21 FM/RDS TUNER
From Primare's new design team led by Mike Bladelius, further evidence of Primare's dedication to the art of audio reproduction in the form of a new remote-controlled RDS tuner.

The Primare T21 is a hi-fi tuner with class-leading features and performan-ce at an affordable price. Manual switching between Mono/Stereo and Narrow/Wide selection is offered, which, in combination with RDS tuning, delivers excellent sound quality and operational simplicity.

The T21 is a tuner for the more budget sensitive audio consumer. But it will never the less provide listeners with Primare-class performance and the satisfaction of owning a high quality design, expressing Primare's trademark build quality, ease of use, and timeless sophistication.

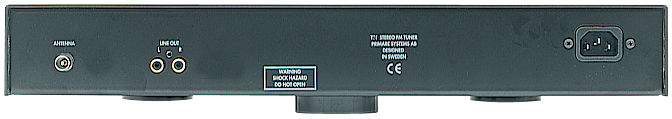

REAR VIEW OF THE PRIMARE T21 FM/RDS TUNER


SPECIFICATIONS.

Tuning range (50 kHz steps): 87,5 -108,0 MHz

Tuning range Japan (50 kHz steps): 75,5 - 90,5 MHz

Usable Sensivity Mono: 1,8 uV, 75 Ohm DIN

Usable Sensivity Stereo: 36 uV, 75 Ohm DIN

Capture Ratio: 1,5 dB

Image Rejection Ratio: 80 dB

Signal-to-noise Ratio Mono: 70 dB

Signal-to-noise Ratio Stereo: 65 dB

Alternate Channel Attenuation: 60 dB, IHF

AM Supression Ratio: 50 dB

Subcarrier Product Rejection: 60 dB

Total Harmonic Distortion Mono: 0,1% (Wide)

Total Harmonic Distortion Stereo: 0,2% (Wide)

Frequency Response: 30 Hz - 15 kHz +/-1,5 dB

Stereo Separation: 40 dB at 1 kHz (Wide), 40 dB at 70 Hz - 10 kHz

Powe consumption: Stand by < 6W

Output Voltage: 0,775 V

Output Impedance: 19 k Ohm

Muting Level: 17,2 dBf, 2,0 uV, 75 Ohm

Output Impedance: 75 Ohm
