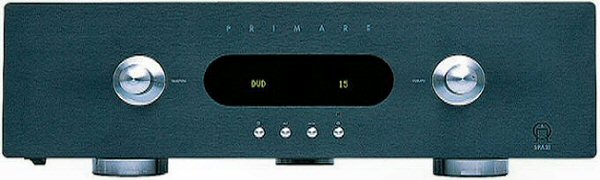

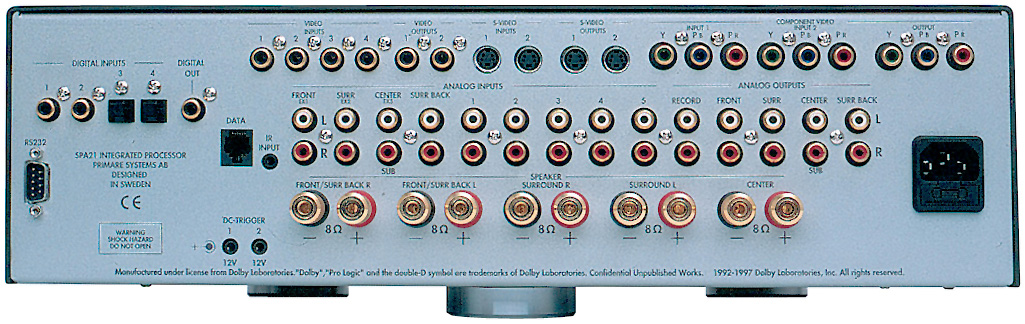

SPA21 Integrated AV Amplifier The SPA21 provides a comprehensive range of features to make it ideal as the heart of an unparalleled music or home entertainment system: Exceptional processing and amplifying performance The SPA21 uses proprietary DSP circuitry developed by Primare, providing better analog performance than the current off-the-shelf circuits used in many other surround amplifier, resulting in a very high standard of multichannel audio reproduction. The SPA21 provides up to 192kHz/ 24 bit processing to accommodate all the current multi-channel audio formats and allow for expansion as new formats are introduced. The SPA21 incorporates a high quality power amplifier providing 100 Watts per channel. Flexible range of inputs The SPA21 provides a range of inputs flexible enough to cater for virtually any combination of sources including: eight or five plus one external analog RCA inputs, two coaxial digital inputs, two TOS-Link optical digital inputs.

Formats Supported:
Dolby® Digital, Dolby Digital® Surround EX, Prologic II, dts®, dts-ES, dts-ES Discrete, Neo6, Primare Surround EX 7.1

Analogue Audio Inputs:
5: Analogue Stereo - RCA 1: 7.1 DVD-A / SACD Pure Analogue Input.

Digital Audio Inputs:
2: Coaxial - RCA 2: Optical - TosLink

Main Audio Outputs:
8: Unbalanced - RCA Front L/R - Centre - LFE - Side L/R - Rear L/R

Record Audio Outputs:
1: Unbalanced - Stereo RCA 1: Coaxial Digital - RCA

Output Power:
5: 100 Watts RMS, 20 Hz - 20 kHz, 8 ?, All channels driven   2: 120 Watts RMS, 20 Hz - 20 kHz, 8 ?, Two channels driven

Features:
Front channel amplification assignable to surround back channels in 7.1 operation Fully configurable & format independent bass management. Independent channel levels for each format.

IR Inputs:1: 3.5mm Jack

RS232 Control :1: 9 Pin D-Sub

Finishes: Titanium or Satin Black.

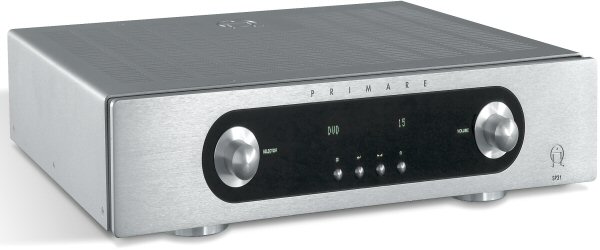

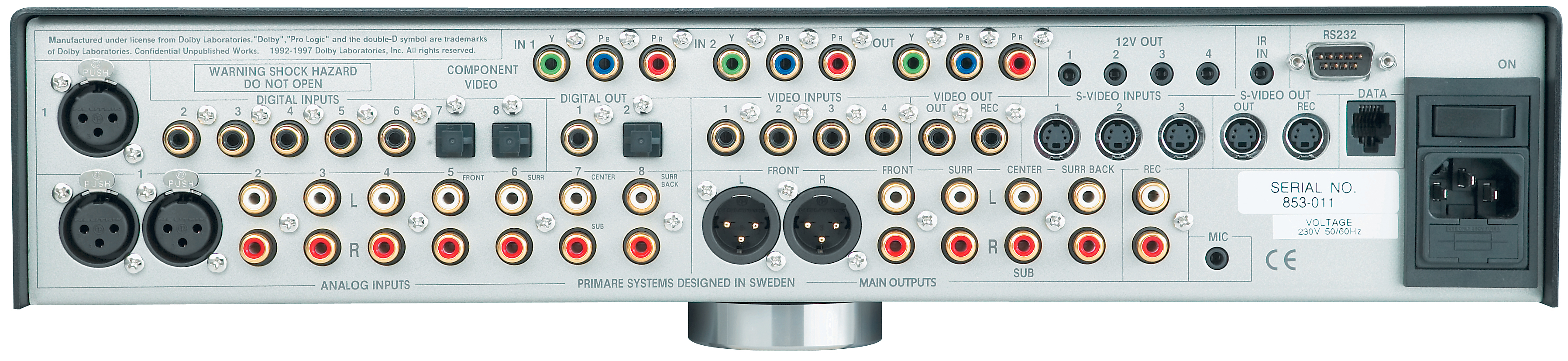

SP31 Multi-Channel Processor For the new SP31, Primare has enhanced a design classic to deliver even greater fidelity, flexibility and reliability to aficionados of multi-channel music and lovers of the movie genre. By virtue of its upgraded electronic design, the SP31 widens the audio and video spectrum still further to provide ever more accurate sound quality, stunningly lifelike pictures and a more vivid contrast with lesser processors. It offers a class-beating combination of innovative DSP engineering, peerless performance, versatile connectivity, superior control and ease of use. The SP31 uses proprietary DSP circuitry developed by Primare, to provide a far more convincing multi-channel sound stage than the standard off-the-shelf circuits used in many other surround processors. It provides up to 192kHz/24 bit processing to accommodate all the current multi-channel audio formats and future surround enhancements. The SP31 is fully configurable from either the front panel or remote control. By using a range of easy to follow onscreen menus, your preferred combination of sources and outputs may be configured quickly and easily to provide simple, user-friendly operation. The SP31 is supplied with a factory set-up to accommodate a standard set of sources conforming to the most usual combination of inputs and outputs, but these may be modified and enhanced according to your taste and system characteristics.

Formats Supported:
Dolby® Digital, Dolby Digital® Surround EX, Prologic II, dts®, dts-ES, dts-ES Discrete, Neo6, Primare Surround EX 7.1

Analogue Audio Inputs:
7: Stereo pairs - RCA Assignable As: 3: Stereo Pairs + 1: 7.1 Analogue Input. Front L/R - Centre - LFE - Side L/R - Rear L/R 1: Balanced Analogue Stereo - XLR

Digital Audio Inputs: 5: Assignable Coaxial Digital 2: Assignable Optical 1: Assignable Balanced Digital (XLR)

Record Audio Output:
1: Unbalanced - Stereo RCA 1: Coaxial Digital

Video Inputs:
4: Assignable Composite Video - RCA 3: Assignable S-Video 2: Assignable Component Video - RCA

Features:
Fully Configurable & Format Independent Bass Management. Independent Channel Levels For Each Format. Optional Auto Calibration Of Levels & Time Alignment.

IR Inputs:
1: 3.5mm Jack RS232:
1: 9 Pin D-Sub Finishes:
Satin Black or Titanium

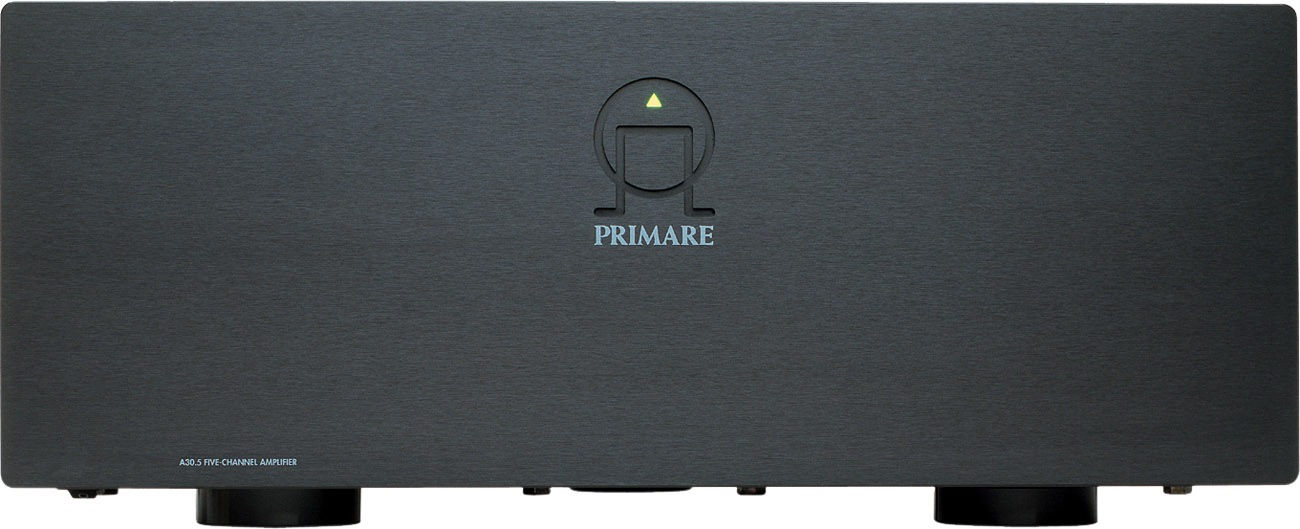

A30.5 Mk2 Power Amplifier A fundamental component of high quality sound reproduction, whether it is movie sound or music, is amplifier power. The explosive energy of an action soundtrack or the finely detailed complexion of the human voice must be reproduced with authenticity. This is a test of quality for any amplifier, especially in home theatre, where five channels of sound require identical resources. Each of the channels within the A30.5 provides incredible current delivery at an outstanding level of quality. Each has its own transformer and power supply, making it identical to the four other amplifiers, but also electronically independent. By taking this meticulous approach, Primare has endowed the A30.5 with optimum stability and channel separation, giving a cleaner, clearer, more accurately defined sound. The A30.5's generously specified heat sink ensures excellent heat dissipation, creating the best possible conditions for perfect performance year after year. For operational convenience, A30.5's intelligent stand-by switch can be controlled from the Primare SP31.7 processor and the system remote control. The A30.5 is simply a glorious piece of hi-fi, configured for today's five channel requirements.

Inputs:
5: Unbalanced Line Level - RCA

Output Power:
120 Watts RMS x 5, 20 Hz - 20 kHz, 8 ?, Both Channels Driven. 200 Watts RMS x 5, 20 Hz - 20 kHz, 4 ?, Both Channels Driven.

Mode of Operation:
5: Power Supplies - 1 Per Channel

Current Capacity:
45 Amperes Peak Per Channel

Frequency response:
<10 Hz-100 kHz, -3 dB.

Control Input:
1: 3.5mm 12 Volt Trigger

Finishes:
Satin Black or Titanium
