PRIMARE DVD PLAYERS.

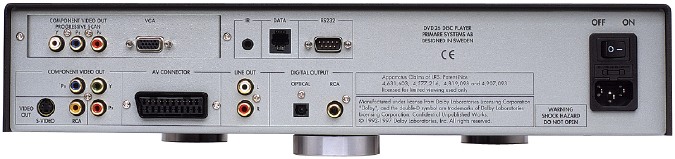

Click on the image below to view the back of the DVD Player.
|

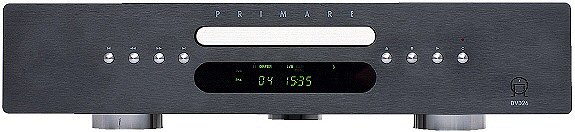

Primare DVD 26 Progressive Scan DVD Player
The design brief for the DVD26 was to create a player where audio and video performance was of equal importance. Capable of playing a wide variety of discs including: CD, CD-Video, Video CDs, CD-R, CD-RW, SVCD, DVD-Video, and MP3 encoded music collections on CD-ROM.
Numerous video outputs are provided: Composite Video, S-Video, RGB Scart and Interlaced Component Video. Progressive Scan, with NTSC and PAL compatibility, is supported via both Component Video and VGA outputs. The Progressive output board is modular allowing for the provision of future Digital Video outputs.
A high quality ultra quiet transport combined with Burr-Brown DAC’s ensures CD playback of the highest order. All associated electronics are located on separate boards well away from the transport and power supply electronics, to deliver the lowest possible distortion and noise. System integration was of equal importance in the design of the DVD26. To this end all video outputs are buffered and isolated enabling simultaneous connection of Component Video and Composite or S-Video feeds. System control is made far more straightforward with the implementation of both discrete IR and RS232 control inputs.
In keeping with Primare’s philosophy, the DVD26 is both simple and intuitive. Day to day operation can be accessed through the front panel buttons, whilst more extensive menu operation is made available using the supplied remote control.
Whether as a stand alone player or at the heart of a high quality multi-channel audio / video system, such as the SP31 or SPA21, the DVD26 will excel in all areas.
|
SPECIFICATIONS.
Overview:
High Quality Progressive Scan DVD Player.
Disc Formats:
CD, CD-Video, Video CDs, CD-R, CD-RW, SVCD, DVD-Video, MP3 Discs
Analogue Audio Outputs:
1: Stereo Pairs - RCA
Digital Audio Outputs:
1: Coaxial - RCA
1: Optical - TosLink
Digital-to-Analogue Conversion:
Burr-Brown 24-bit/96kHz Architecture.
Video Outputs Interlaced:
1: Component Video - RCA
1: Composite Video
1: S-Video
1: RGB Scart - Euro Connector
Video Outputs Progressive:
1: Component Video - RCA
1: VGA - 15 Pin
Video Stage:
Analogue Devices ADV7300A
Progressive Scan (PAL & NTSC)
Buffered Video Output Stages.
Video Setting for RF Distribution.
Audio Features:
Multiple Independent Power Supplies.
24 Bit 96khz Playback.
IR Inputs:
1: 3.5mm Jack
RS232:
1: 9 Pin D-Sub
Finishes:
Satin Black or Titanium
Dimensions:
W 430mm x D 380mm x H 100mm (With Feet )

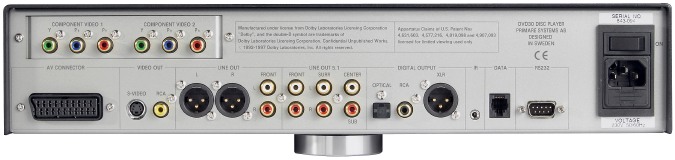

Click on the image below to view the back of the DVD Player.
|
Primare DVD 30 Reference Multi-Format DVD-A & SACD Player
For those seeking a universal player of the finest calibre, there can be few contenders offering quite the same level of performance and panache as Primare’s new DVD30. Uncompromising in its selection of the finest components, the DVD30’s innovative circuit topology promises class leading standards of reliability and performance allied with an impressive range of features.
Equipped with the latest triple 192 KHz/24-bit audio DAC's and fully balanced outputs, the DVD30 will provide sound quality of an exceptionally high standard. DVD-A, DVD, DVD-R/RW, SACD, CD, CD-R & MP3 are all handled with equal dexterity. Video reproduction is also of the highest order. DVD-Video and DVD-R/RW discs are accurately reproduced using 108 MHz/12-bit video processing. Progressive scan is supported for both NTSC and PAL material.
To facilitate image optimisation, sixteen video parameter adjustments are made available. When combined with: three user memories, two Component Video outputs, S-Video, Composite Video and RGB Scart outputs, this degree of flexibility provides the perfect solution for both multi-format and multi-monitor applications.
Whatever your video replay requirements, Primare’s DVD30 will exceed your expectations. Extending Primare’s reputation for chic, décor-enhancing Scandinavian design, the DVD30’s ultra-sophisticated exterior is available in either black or titanium finishes.
|
SPECIFICATIONS.
Overview:
Reference Multi-Format Player, Fully Balanced Output
Disc Formats:
DVD-V, DVD-A, DVD-R, DVD-RW, SACD, CD, CD-R, CD-RW
VCD (v2.0, MPEG 1), S-VCD (IEC), MP-3 Audio Outputs
Analogue Audio Outputs:
6: Unbalanced - RCA Front L/R - Surround L/R - Centre - Subwoofer.
2: Unbalanced - RCA - Front L/R
2: Balanced - XLR - Front L/R
Digital Audio Outputs:
1: AES/EBU - XLR
1: Coaxial - RCA
1: Optical - TosLink
Digital-to-Analogue Conversion:
2: Triple 192KHz/24-bit Audio DAC's For Front L/R Channels
4: 192KHz/24-bit Audio DAC's : Centre, Surround L/R, Subwoofer
Video Outputs:
2: Component Video - RCA
2: S-video
1: Composite Video - RCA
1: RGB - Scart
Video Digital-to-Analogue Conversion:
12-bit/108MHz
Pure Cinema Progressive scan
Progressive Scan (PAL & NTSC)
Super-Fine Focus Filter with 4:4:4 Video Up-sampling.
16 Video Parameter Adjustments, with 3 User Memories
Power Supplies:
Totally Independent for every Audio & Video section
IR Inputs:
1: 3.5mm Jack
RS232:
1: 9 Pin D-Sub
Finishes Available:
Black, Titanium
Dimensions:
W 430mm x D 380mm x H 100mm (With Feet )
|
