PIONEER 50" PLASMA TELEVISIONS.

Pioneer Plasma Television

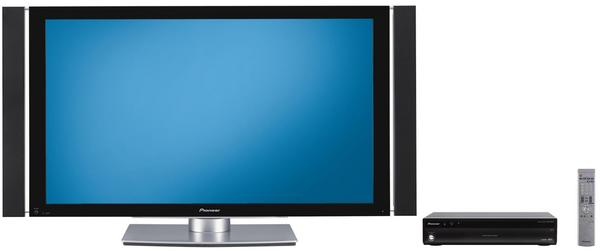

Pioneer PDP-506FDE Pure Vision Black Plasma TV 50-inch
Certified 'HD ready', this Plasma TV accurately displays signals from a wide variety of high definition sources. The images are portrayed with outstanding depth and colour. All this made possible by unique technologies.
- The PUREBLACK Crystal Layer makes black tone reproduction reach new levels.
- PURE Drive 2HD digital video processing smartly optimizes picture quality of each source.

Result: Images are clearer, sharper and more natural than ever before. See the difference.

The displayed speakers are optional.

SPECIFICATIONS.

Key features	PDP-435FDE
	Future-ready for High-Definition TV

	Reproduction of 7 billion colours

	High-end multimedia functions (HDMI, i/o Link.A)

	New Direct Colour Filter

	Frequency rate (75/100 Hz)

	3 Euro-SCART input terminals

Picture	PDP-435FDE
Screen Size	43-inch

Aspect Ratio	16:9

Number of Pixels	1024 (Hor) x 768 (Ver)

True Matrix Imaging with Deep Waffle Rib Structure	Yes

Direct Colour Filter	Yes

Advanced Super CLEAR Drive	Yes

High-definition display (True and Wide XGA)	Yes

Brightness	1100 cd/m2

Contrast Ratio	1200:1

Viewing Angle	more than 160° (Hor/Ver)

3 Line Digital Comb Filter	PAL/NTSC (Main & Sub)

Dynamic HD Converter	Yes

Video Signals	PAL/SECAM/NTSC3.58/NTSC4.43/PAL60/HD/PC

DNR (Digital Noise Reduction)	Yes (Off/High/Mid/Low)

MPEG NR (Noise Reduction)	Yes (Off/High/Mid/Low)

Colour Management	Yes

Natural Enhancer	Yes

Digital Flicker Free	Yes

Digital CTI (Colour Transient Improvement)	Yes

Dynamic Range Expander	Yes (Off/High/Mid/Low)

Still Picture	Yes

CTI (Colour Transient Improvement)	Yes

Colour Temperature Adjustment	Yes (High/Mid-High/Mid/Mid-Low/Low, Manual)

Pure Cinema	Yes (Off/Standard/ADV)

AV Selection (Programmed Picture)	Yes (Standard/Dynamic/Movie/Game/User)

Wide Screen Signalling (WSS)	Yes

Audio	PDP-435FDE
Audio Output Power	13 Watt + 13 Watt (1 kHz, 10%, 8 Ohm)

Amplifier	Built-in

Tone Control	Bass, Treble, Balance

Sound Options	FOCUS, SRS, TruBass

HDMI Compatible	Yes

Other	PDP-435FDE
Dimensions Display (W x H x D)	1120 x 652 x 93 mm

Dimensions Media Receiver (W x H x D)	420 x 90 x 295 mm

Weight Display	26.8 kg

Weight Media Receiver	4.8 kg

Power Consumption Display	295 Watt

Power Consumption Media Receiver	27 Watt

Power Requirements	AC 220 - 240 V, 50/60 Hz

Pioneer PDP-506XDE Pure Vision Black Plasma TV 50-inch
See more details. Discover superior picture quality and ultimate control. Enjoy digital TV and radio thanks to the multimedia receiver with digital tuner.

Certified 'HD ready', this Plasma TV accurately displays signals from a wide variety of high definition sources. The images are portrayed with outstanding depth and colour. All this made possible by unique technologies.

The PUREBLACK Crystal Layer makes black tone reproduction reach new levels.

PURE Drive 2HD digital video processing smartly optimizes picture quality of each source.

Result: Images are clearer, sharper and more natural than ever before. See the difference.

The displayed speakers are optional.

SPECIFICATIONS.

Main Features	PDP-506XDE
Diagonal Screen Size	50-inch/127 cm

Contrast Ratio	4.000:1

HD ready	Yes

Digital Tuner	Yes

HDMI Input	2

Home Gallery	Yes

ISF Calibration Ready	Yes

Analogue Tuner Noise Reduction	Yes

Electronic Program Guide (NexTView)	Yes

PC Input	Yes

Multiscreen Options (PiP/PaP)	Yes

PUREBLACK Panel	Yes

PURE Drive 2HD	Yes

Picture	PDP-506XDE
XGA Panel	Yes

Aspect Ratio	16:9

Number of Pixels	1280 (Hor) x 768 (Ver)

Brightness	1.100 cd/m2

Video Signals	PAL/SECAM/ NTSC3.58/NTSC4.43/ PAL60/HD/PC

PC Signals	VGA/SVGA/ XGA/Wide XGA

Dual Screen Display	Yes

Picture-in-Picture Display	Yes

Still Picture	Yes

AV Selection (Programmed Picture)	Yes

PUREBLACK Crystal Layer	Yes

Direct Colour Filter	Yes

True Matrix Imaging with Deep Waffle Rib Structure	Yes

Colour Temperature Adjustment	Yes

Colour Management	Yes

Digital CTI (Colour Transient Improvement)	Yes

DNR (Digital Noise Reduction)	Yes

MPEG NR (Noise Reduction)	Yes

PAL 3D Y/C Separation	Yes

Active Dynamic Range Expander (DRE)	Yes

Natural Enhancer	Yes

i-CLEAR Drive	Yes

Dynamic HD Converter	Yes

Digital Flicker Free	Yes

PureCinema	Yes

Audio	PDP-506XDE
Audio Output Power	13 Watt + 13 Watt (1 kHz, 10%, 8 Ohm)

Tone Control (Bass, Treble, Balance)	Yes

Sound Options	Surround (SRS), Audio Orientation (FOCUS), Bass Boost (TruBass)

Subwoofer Out (Variable)	Yes

Digital Tuner	PDP-506XDE
DVB-T Compliant	Yes

Modulation	COFDM (2k/8k)

Video decoding	MPEG2 MP@ML

Preset Channels	999

Digital Teletext (MHEG 5)	Yes

Tuner	PDP-506XDE
Auto Channel Search	Yes

Reception System	PAL BG/I/DK, SECAM BG/DK/L/L'

Number of Preset Channels	99

Teletext (CEEFAX/FLOF/TOP)	Yes

Teletext Picture and Text (Dual Screen)	Yes

Control	PDP-506XDE
OSD (On-Screen Display)	GB/D/F/NL/I/E/P/S/ FIN/GR/TR/RUS/NO/DK

Remote Control	Preset (TV/VCR/STB/DVD/DVR)

i/o Link.A	Yes

SR +	Yes

Energy Save mode (for AV and PC)	Yes

Power Management (for PC)	Yes

Connection terminals	PDP-506XDE
HDMI Compatible	2

Component Video In	1

S-Video In (Front AV)	1

RCA AV In (Front AV)	1

Euro-SCART	3

Digital Optical Audio Out	1

RCA Audio Out	1

PC Input (Front)	1

Headphone Out (Front)	1

Subwoofer Out	1

PC Card Slot	1

Common Interface Slot (CA Card)	1

SR Control In/Out	2

i/o link.A Select	1

Antenna Terminal Digital Tuner	2

Antenna Terminal Analogue Tuner	1

Other	PDP-506XDE
Dimensions Display (W x H x D)	1224 x 717 x 92 mm

Dimensions Media Receiver (W x H x D)	420 x 90 x 299 mm

Weight Display	31.8 kg

Weight Media Receiver	4,3 kg

Power Consumption Display	344 Watt / 0.4 Watt

Power Consumption Media Receiver	25 Watt / 0.7 Watt

Power Requirements	AC 220 - 240 V, 50/60 Hz
