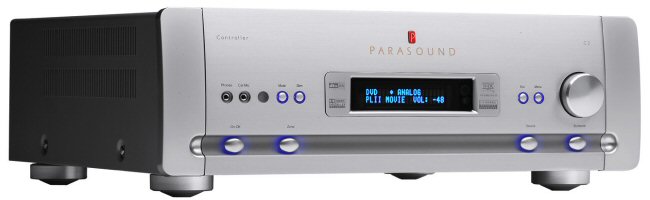

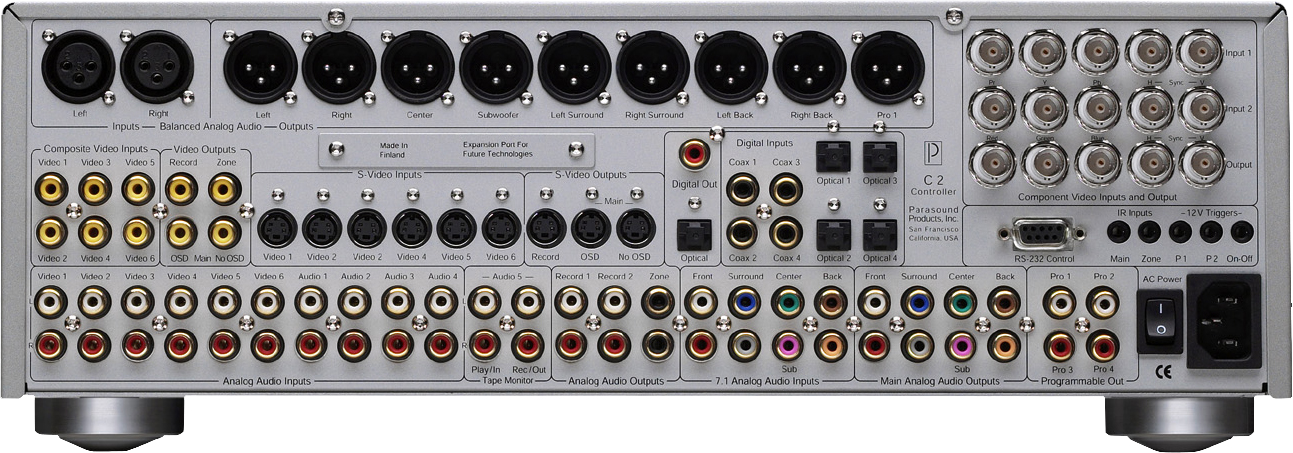

Parasound Halo C2 AV Controller The THX® Ultra 2 certified Halo C2 Controller was designed to offer same superior quality, convenience and refinement found in the flagship C1, but at an extremely competitive price. The Motorola 24-bit processor used in the C1 Controller, is again employed in the C2, and is capable of extracting multi-channel data streams with incredible accuracy. A custom-designed DSP engine by Flextronics Design of Finland handles all bass management and time alignment duties. Individual digital channels are then fed through AKM ultra low jitter 24-bit/96 kHz D to A converters. All current multi-channel formats a catered for including Dolby® Digital, dts, dts - ES, Neo-6, Pro Logic II and the latest Prologic IIX. Aware of the potential lip sync issues in today's high resolution video formats Parasound now include five independent AV sync delay presets, each is assignable to an input ensuring a seamless video and audio performance. Analogue routing is given equal priority - all circuitry being of the highest quality and operating completely independently of all digital circuitry. Fully balanced inputs and outputs enable the C2 to perform as an exceptional analogue pre-amplifier. In common with the C1 Controller, the C2 is equipped with the highly regarded and fully PC programmable MX700 remote control. Capable of controlling every item within your home theatre system, the C2 also includes a smaller ‘Side Kick’ remote control, which is perfect for controlling the second zone. Like the C1, the C2 provides significant expansion opportunities. Eight channels are provided as standard with four additional programmable outputs being available for either system specific use, such as a height channel, or the accommodation of future formats. The internal open architecture and software upgradeable processors enable the Halo C2 to provide years of state-of-the-art audio/visual entertainment.

Formats Supported:
THX Ultra2 Certified. Dolby® Digital, THX Surround EX dts®, dts-ES 6.1, dts® 24-96KHz, Prologic II, Prologic IIX 7.5 Channel Enhanced Surround; 7.1 with 4 programmable outputs.

Audio Inputs:
4: Audio Only Stereo RCA 6: AV Stereo RCA- Linked Video Input 4: Assignable Coaxial 4: Assignable Optical 1: 7.1 Pure Analogue Input 1: Balanced Analogue Stereo Inputs - XLR

Video Inputs: 6: Composite Video 6: S -Video Inputs 2: Component Video - BNC + Separate H & V Sync

Audio Outputs Main Zone:
8: Unbalanced – RCA Front L/R - Centre - Subwoofer - Surround L/R - Back L/R 2: Unbalanced – RCA Programmable - Fully configurable including height channel 1: Unbalanced – RCA Additional Subwoofer - Matches main Subwoofer output 1: Unbalanced – RCA LFE Enhancement - 20Hz Low Pass Filter
8: Balanced – XLR Front L/R - Centre - Subwoofer - Surround L/R - Back L/R 1: Balanced – XLR Programmable (Fully configurable including height channel)

Audio Outputs Record & Zone 2:
3: Fixed Stereo Record Outputs - RCA 1: Variable Stereo Output Zone 2 - RCA 1: Coaxial Digital 1: Optical Digital

IR Inputs:
2: 3.5mm Jack - Main & Zone 2 RS232:
1: 9 Pin D-Sub Upgrading / Programming / Control

System Remotes:
1: MX700 PC Programmable Remote Control 1: Side Kick PC Programmable Remote Control

Rack Mount Option:
C2: 3 Rack Units

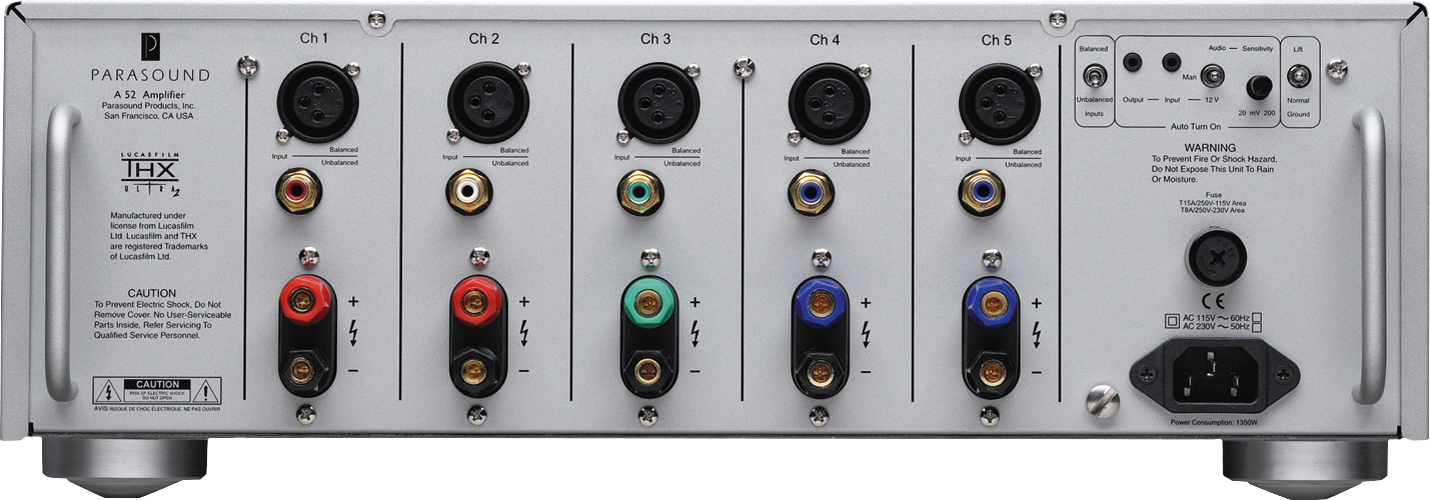

Parasound Halo A52 Multichannel Amplifier The A52 is essentially a less powerful version of the flagship A51 amplifier. Both the A51 and A52 utilise JFET inputs, MOSFET drivers and a high-current bipolar output. Guided by designer John Curl, Parasound has created a five-channel amplifier with sonic qualities usually reserved for ultra high-end stereo models. Its 125 Watts per channel ensures the effortless reproduction of musical subtleties and movie special effects. Exclusive class A/AB operation, found in the A51, is present in the A52, further enhancing the exceptional performance achieved by this multi-channel amplifier. If your system's requirements are for a smaller scale, high-performance amplifier, the A52 is the perfect choice.

Inputs:
5: Unbalanced - RCA 5: Balanced - XLR

Speaker Outputs:
5: Heavy Duty 24k Gold Plated 5 Way Terminals

Output Power:
125 watts RMS x 5, 20 Hz 20 kHz, 8 ?, all channels driven 225 watts RMS x 5, 20 Hz - 20 kHz, 4 ?, all channels driven

Mode of Operation:
High Bias Class A/AB. Current capacity: 30 Amperes peak per channel

Features:
THX Ultra 2 Certification. Auto Turn-On. 12v Trigger / Audio Sensing Ground Lift Switch.

Rack Mount Option: A52: 3 Rack Units

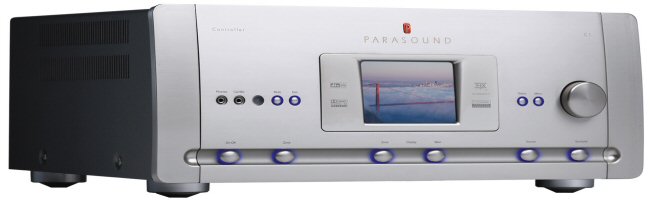

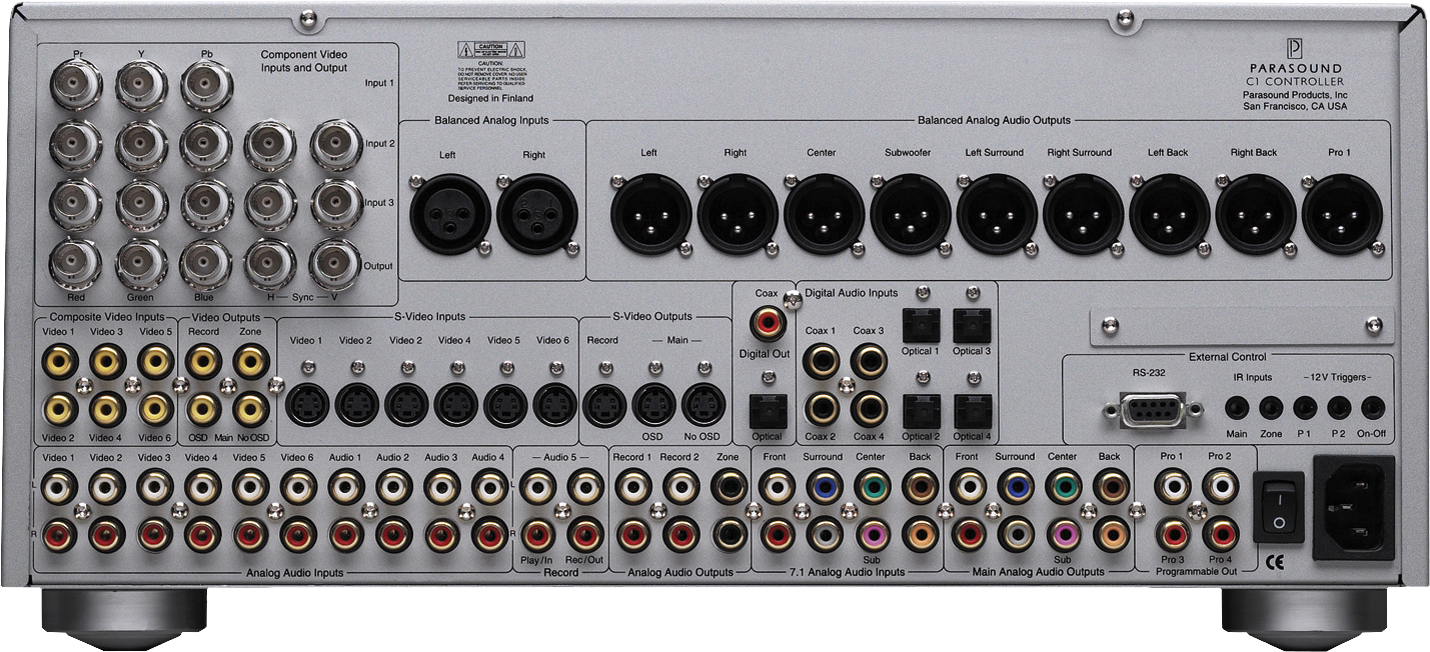

Parasound Halo C1 AV Controller The Halo C1 controller is the embodiment of Parasound’s product philosophy. Offering an exclusive 7.5 channel design, THX® Ultra 2 Certification and a fully automated calibration system, the C1 will answer all of the questions asked of a home theatre controller. At the heart of the C1 is an exceptional Motorola 24 bit processor. Capable of extracting multi-channel data streams with incredible accuracy. A custom designed DSP engine by Flextronics Design of Finland handles all bass management and time alignment duties. Individual digital channels are then fed through AKM ultra low jitter 24bit/96kHz D to A converters. All current multi-channel formats a catered for including Dolby®Digital, dts, dts - ES, Neo-6 and the latest Prologic IIX. Aware of the potential lip sync issues in today's high resolution video formats Parasound now include five independent AV sync delay presets, each is assignable to an input ensuring a seamless video and audio performance. Analogue routing is given equal priority - all circuitry being of the highest quality and operating completely independently of all digital circuitry. Fully balanced inputs and outputs enable the C1 to perform as an exceptional analogue pre-amplifier. The C1 controller is equipped with the highly regarded and fully PC programmable MX700 remote control. Capable of controlling every item within your home theatre system, the C1 also includes a smaller ‘Side Kick’ remote control, which is perfect for controlling the second zone. Another design element that distinguishes the C1 is its front panel TFT display. This permits the viewing of any internally switched source or the controller’s own on-screen menu. For DVD-A and SACD sources the TFT really comes into its own. Many of these discs are menu navigated and yet are audio-only formats. Through the C1's TFT display, full access can be given to a disc's contents without the need for an external monitor. The C1 provides significant expansion opportunities. Eight channels are provided as standard with four additional programmable outputs being available either for system specific use, such as a height channel, or the accommodation of future formats. The internal open architecture and software upgradeable processors provide significant long-term peace of mind.

Formats Supported:
THX Ultra2 Certified. Dolby® Digital, THX Surround EX dts®, dts-ES 6.1, dts® 24-96KHz, Prologic II, Prologic IIX 7.5 Channel Enhanced Surround; 7.1 with 4 programmable outputs.

Audio Inputs:
4: Audio Only Stereo RCA 6: AV Stereo RCA- Linked Video Input 4: Assignable Coaxial 4: Assignable Optical 1: 7.1 Pure Analogue Input 1: Balanced Analogue Stereo Inputs - XLR

Video Inputs:
6: Composite Video 6: S -Video Inputs 2: Component Video - BNC + Separate H & V Sync 1: Component Video - BNC

Video Display:
1: 5" Front Panel TFT Display. Main & Zone 2 Outputs Including OSD & Set Up Menu.

Audio Presets:
5: Independent Level Presets - Input Assignable Centre / Surround / Subwoofer / Bass / Treble

AV Sync Delay:
5: Independent Lip Sync Presets - Input Assignable Delay Range: 0 - 150mS

Auto Calibration:
Automatic Calibration Of Channel Levels & Delay Times 1: Microphone Included

IR Inputs: 2: 3.5mm Jack - Main & Zone 2

RS232:
1: 9 Pin D-Sub Upgrading / Programming / Control

System Remotes:
1: MX700 PC Programmable Remote Control 1: Side Kick PC Programmable Remote Control

Rack Mount Option:
C1: 4 Rack Units

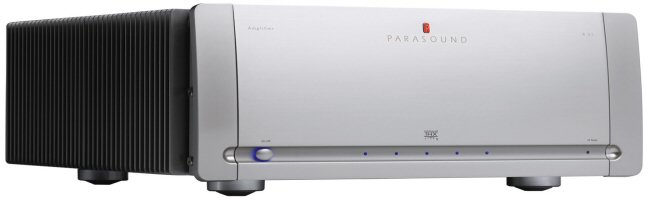

Parasound Halo A51 Multichannel Amplifier Guided by designer John Curl, Parasound has created a five-channel amplifier with sonic qualities usually reserved for ultra high-end stereo models. Its 250 Watts-per-channel ensures the effortless reproduction of musical subtleties and movie special effects, whilst its exclusive class A /AB operation places the A51 in a league of its own. Considerable development time was invested in the high-bias design of the A51, to deliver absolute sound quality and optimum performance within a few minutes of warm-up. More conventional designs will only achieve optimum performance after hours of operation – at the end of the film. A refined and rugged powerhouse, the A51 will provide many years of high-end audio enjoyment for comparatively minimal financial outlay.

Inputs:
5: Unbalanced - RCA 5: Balanced - XLR

Speaker Outputs:
5: Heavy Duty 24k Gold Plated 5 Way Terminals

Output Power:
250 Watts RMS x 5, 20 Hz - 20 kHz, 8 ?, all channels driven 400 Watts RMS x 5, 20 Hz - 20 kHz, 4 ?, all channels driven

Mode of Operation:
High Bias Class A/AB. Current capacity:60 Amperes peak per channel

Features:
THX Ultra 2 Certification. Auto Turn-On. 12v Trigger / Audio Sensing Ground Lift Switch.

Rack Mount Option:
A52: 4 Rack Units
