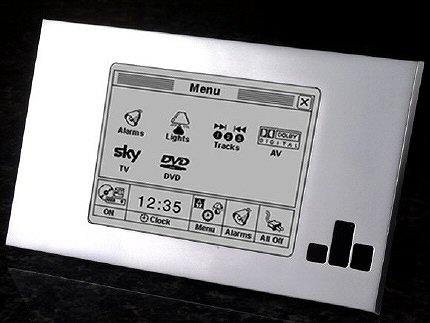

LIVING CONTROL VIDEO PAD AV

VideoPad-AV Enhanced VideoPad. Multiroom / Lighting & Home Theatre System Controller.
In many multi-room installations, one room is reserved for a home theatre system. In these rooms, the amplifier used is external to the multi-room system and not controlled by it.

The VideoPad AV provides this control. Once configured by your installer, you will be presented with a touch-screen controller that appears, at first, to be identical to all the other VideoPads within your system. The VideoPad AV will, however, switch on your home theatre system, dim lights, lower a projector screen and start the movie playing, in addition to performing its multi-room system functions. The options are numerous and tailored to your individual requirements.

Further keypad controls include DVD, Sky navigation, and lighting control. Available in Gold, Polished Chrome and Satin Chrome, the VideoPad AV can seamlessly integrate your Living Control multi-room and home theatre system to make using both a thoroughly enjoyable experience.

Overview:
Combines operation of: Living Control Multiroom System / AV Equipment & Lighting Control

Mode Of Operation:
Touch Screen Controller

Multiroom Features:
Direct Source selection. Direct -Alphabetical Selection- : Albums / Play lists / Radio Stations & Sky Channels. In-Built IR receiver for extended operation

Enhanced Multiroom Functions:
Access to Alarms & EVENT Timers when used with RoomBox 6 & EVENT CPU's

Home Theatre System Control:
AV Amplifiers & Processors: Power management / Input switching / Effect selection / Volume control

DVD Players:
Transport function / Menu navigation

Sky & Sky + :
Menu navigation / Playback control (Sky +)

Lighting Control:
Rako & Lutron Lighting Scene selection

Enhanced Features:
VideoPad AV Actions: A Single button press can trigger: AV Amp power & Input selection / Screen activation / Lighting Scene selection & Source playback. Multiroom components can be routed through RoomBox 6 or directly through AV Amplifier. Local Source Control - Control can be provided for components unique to one room. (RoomBox 6 only)

Installation Features:
Controlled components can be located remotely or within room. Virtually all aspects of a VideoPad AV can set up directly from a front panel menu screen. Programmable voltage outputs x 2 (Screen / Blind activation) IR Trigger for 3rd party control systems. Compatible with RoomBox 6 & EVENT! CPU

Finishes Available:
Gold, Polished Chrome & Satin Chrome
