LIVING CONTROL ROOM BOX 4

Living Control

Living Control

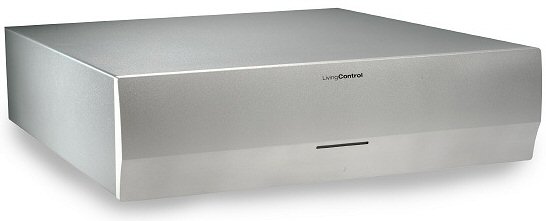

RoomBox 4 Six Source - Four Zone Intelligent Multiroom Amplifier Controller
The design objective for the RoomBox 4 was to create an affordable multi-room controller that embodied many of the virtues found in the ‘Afinity’ RoomBox 6. Although this is the ‘entry level’ ‘Afinity’ multi-room system, it supplies a combination of: elegance, performance and sheer operational simplicity that clearly exceeds ‘entry level’ specification.

The RoomBox 4 is a digital multi-room system, distributing six sources to four independent areas. An area can be a single room or collection of rooms. The DisplayPad-SL is the operational touchstone that releases the magic of the RoomBox 4. When combined with the RoomBox 4, the controlling power of this is elegant keypad controller belies its simple appearance. You can select sources, albums, and radio stations by name, from the panel or via remote control. Choose from thousands of albums, stored on the MusicBox 3, directly from any room. All MusicBox 3 titles are displayed in real time. The moment an album has been recorded, it is available for selection and playback.

If funds do not permit the inclusion of the MusicBox 3 initially, the RoomBox 4 provides full support for carousel CD players. Simple to operate, but enormously powerful, the RoomBox 4 is an excellent introduction to the new multi-room listening experience.


SPECIFICATIONS.
Overview:
Six Source - Four Zone Intelligent Multiroom Amplifier Controller

High Quality Matrix Pre-Amp:
Analogue Audio Inputs- 6: Stereo (RCA)

Speaker Level Outputs:
High Power Amplification - 8 x 40W RMS (4 Ohm) - Stable Into 2 Ohm Load

Component Control:
IR Control - High Power Blaster Emitters. Optional Plug in Emitters MusicBox 3 Control - Two Way RS232 Serial Connection

DisplayPad / IR Pad Connection:
4: RJ45 sockets

In-Room Keypad / Control Options:
DisplayPad-SL / DisplayPad-S / IR Pad / IR Gate

Product Support:
MusicBox 3 - Real Time Title Updating & -By Name - Album & Play list selection. 2 x 16 Character Scrolling Display FM & DAB Radio -By Name - Preset selection. 1 x 8 Character Display Sky / Sky + / FreeView - Channel Skip Carousel CD Player Support - Disc Skip / Disc Number

Enhanced Convenience:
Client Specific Source Selection - No Aux or Blank Selections Intelligent In Use & Walk Though Feature. Prevents inadvertent changes & allows selections to be picked up when walking from room to room. Room Expansion - Optional Zone Splitter Ideal for En-Suite Bathrooms / Patios etc Intelligent Last Volume - Each Zone independently monitored Plug & Play Set Up - No PC Required.

Dimensions:
W 435mm x H 115mm x D 420mm
