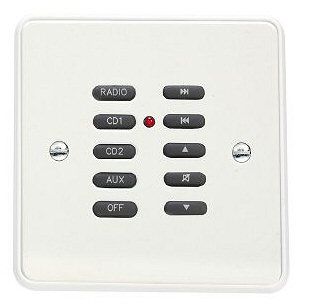

LIVING CONTROL RF KEYPAD

Living Control

Living Control
Wireless Multi-room RF Keypad.
When a wired multi-room keypad is not a practical proposition, Living Control’s RF Pad provides an elegant wireless alternative. Simply locate the RF Pads in the required rooms, run speaker cable from the controller to your chosen speakers, and the powerful RF transmitters within each keypad will allow operation of either RoomBox 4 or 6 multi-room controllers.

For those with basic speaker wiring and in-wall volume controls, the RF Pad and RoomBox controller can provide a simple-to-install true multi-room solution.

The RF Pad can also readily extend the control of a wired Living Control multi-room system. Within a bedroom, for example, additional RF Pads could be mounted on either side of the bed. Each RF Pad is powered by lithium batteries, avoiding the need for an external power supply.

Powerful RF transmitters within each RF-Pad are capable of sending commands through walls and ceilings to the RoomBox controller located up to 15 metres away. For very large properties an optional booster will extend this range to over 100 metres!

Whether used as the primary keypads within your system, or as a fast install extension keypad, Living Control’s RF-Pad will provide music control virtually anywhere you wish. For the ultimate in convenience the RF Pad is now available as a double gang keypad combining music and Rako lighting control. Click on images to view keypad.

The RF Pad is available in black or white as standard, optional metal plates are also available at a small additional cost.


SPECIFICATIONS.
Overview:
Wireless Multi-Room Keypad

Applications:
Primary or Extension Multi-Room Control

Mode Of Operation:
RF Wireless Transmission Ten Button Control

Transmission Range:
15M – (Through Walls & Ceilings) 100M – (With Optional RF Booster) Variable With Environment

Functions:
Source Selection (1-4 Direct 5 & 6 Push & Hold) Track / Channel Skip Volume Level / Mute Room Off / All Off LED Feedback of RF Transmission

System Compatibility:
Living Control RoomBox 4 Living Control RoomBox 6 / VX

Required Components:
RF Module (1 per RoomBox)

Mounting Features:
In-Wall / On-Wall UK Single Gang In-Wall / On-Wall Euro Single Gang Surface Mount (No Back Box)

Standard Finishes:
Black, White

Optional Plate Finishes:
Brushed Steel, Polished Steel, Satin Brass

Dimensions:
W 92mm x H 92mm x D 14mm (Surface Mount)
