LEXICON DVD PLAYERS.

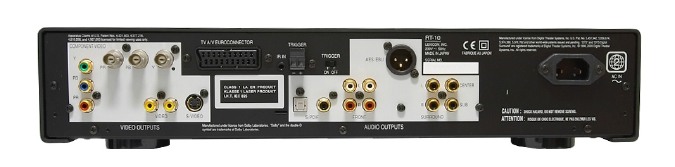

Click on the image below to view the back of the DVD Player.
|
Lexicon RT-10 Reference Multi Format Disc Player. DVD / DVD-A / CD / Multi-Channel SACD.
Designed to match the industrial design of Lexicon’s award-winning home theatre products, the RT-10 is capable of playing virtually all current 5" optical discs and is the obvious choice for those seeking a high calibre source component to match Lexicon’s peerless controllers and amplifiers.
The RT-10 features three S/PDIF digital audio outputs: one AES/EBU, one coaxial, and one optical connector; which provide for flexibility in connecting external decoders of Dolby® Digital, dts, and PCM sources. The RT-10 also includes exceptionally high quality 24-bit/192kHz digital-to-analogue converters for all six analogue output channels to allow high-bandwidth formats, such as DVD-A and SACD, to be enjoyed at full resolution.
The RT-10 features a pure cinema, progressive scan component video output, 12-bit/108MHz digital-to-analogue converters, and professional grade BNC-style component video output connectors. When combined these provide a picture quality of exceptional clarity and precision. Comprehensive video adjustments and memory locations complement superior video performance, allowing the RT-10 to be fine-tuned for any type of display device. In addition, the RT-10 features a second component video output with RCA connectors, two composite video outputs, an S-video output, and an RGB output via Scart. All outputs are fully buffered, permitting simultaneous operation. Whether it is used with a plasma screen, projector, or monitor, the RT-10 is capable of stunning video performance.
The RT-10’s inherent flexibility and consistent high performance make it an excellent long- term investment. The RT-10 excels in playing the latest film on DVD, an SACD re-mix of an old favourite, or a classic CD album to provide you with a seamlessly easy-to-use, high quality, reliable source component.
|
SPECIFICATIONS.
Overview:
Reference Multi-Format Player
Disc Formats:
DVD-V, DVD-A, DVD-R, DVD-RW, SACD, CD, CD-R, CD-RW
VCD (v2.0, MPEG 1), S-VCD (IEC), MP-3 Audio Outputs
Analogue Audio Outputs - RCA:
4: Front L/R - Downmix
1: Centre
1: LFE
2: Surround L/R
Digital Audio Outputs:
1: AES/EBU - XLR
1: Coaxial - RCA
1: Optical - TosLink
Digital-to-Analogue Conversion:
24-bit/192kHz Architecture all channels
Video Outputs:
2: Component video - 1: RCA - 1: BNC
1: S-video
2: Composite Video - RCA
1: Euro AV - SCART
Video Digital-to-Analogue Conversion:
12-bit/108MHz - Component Output
10-bit/54MHz for A/V Scart Euro connector
Pure Cinema Progressive
IR Input:
3.5mm T/R/S
D1/D2:
14-pin D connector
Rack Mounting Option available.
RT-10: 2 Rack Units
Dimensions:
W 440mm x D 310mm x H 94mm (With Feet)
|
