Promotional photo.  Speaker icon  HI-FI Separates & Systems
   Home Cinema
   Multi-Room Systems
   Design & Installation
   Systems Tailored To Your requirements
   Domestic & Commercial Contracts Undertaken
   20 Years Experience
   FREE Local Consultation

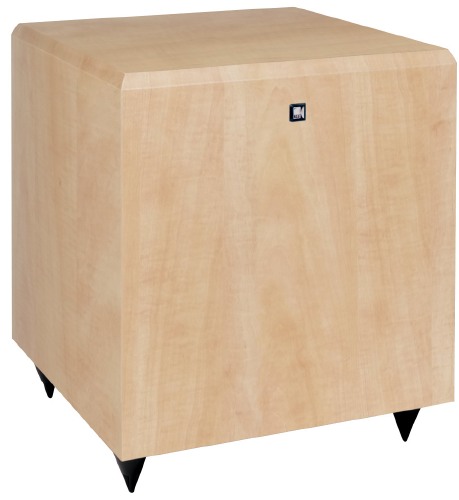

Kef Subwoofers



Kef PSW 1000 Subwoofer
A 100W on-board amplifier driving a 200mm (8”) bass driver adds a powerful extra dimension to the 3D sound image.
A reflex design with carefully contoured ends to the ‘racetrack’ port to eliminate noise and sturdy internal bracing to minimise box colouration, The ideal entry level sub.

SPECIFICATIONS.

Model
PSW 1000
Design
Bass reflex, downward firing
Drive unit
200 mm (8")
Frequency response at 15°
horizontally off axis ±3 dB
38 Hz - 180 Hz
Crossover frequency
variable
Amplifiers
100 W built in
Maximum output
106 dB
Magnetic shielding
Yes
Weight
13.5 kg (29.7 lbs)
Dimensions
(H x W x D)
360 x 320 x 320 mm
14.2 x 12.6 x 12.6 in.
Finishes
Black Ash, Maple or Dark Apple

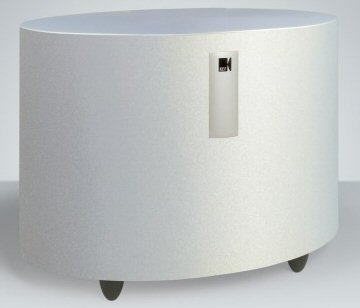

Kef PSW 2500 Subwoofer
The latest addition to the Kef range of subwoofers, the multi-purpose PSW2500 active subwoofer has an attractive curved cabinet which is heavily braced to eliminate any unwanted 'box coloration'.

Using a 250mm long-throw bass driver and a 250W built in amplifier; this closed box design will deliver ground-shaking effects and depth, whether it is a movie or music. The PSW2500 also incorporates many new features such as ground lift ability and switchable movie/music modes. The subwoofer will complement any music or multi-channel system,

SPECIFICATIONS.

Model
PSW 2500
Design
Closed Box
Drive unit
250mm (10") ultra long throw bass driver
Frequency response at 15°
horizontally off axis ±3 dB
33 Hz - 150 Hz
Crossover frequency
n/a
Amplifier requirements
250 W built in
Sensitivity (2.83V/1m)
100mV for full Output
Maximum output
108 dB
Impedance
n/a
Magnetic shielding
Yes
Weight
14.5 kg (31.9 lbs)
Dimensions
(H x W x D)
360 x 495 x 325 mm
14.2 x 19.5 x 12.8 in.
Finishes
Maple, Dark Apple or Black Ash

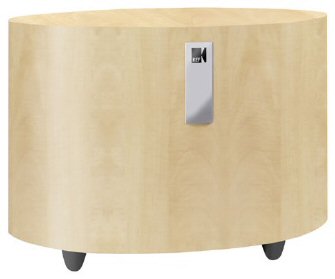

Kef PSW 3500 Subwoofer
With a 300W power amp driving a 300mm (12”) down-firing long-throw bass unit, PSW3500 is capable of generating a heftily extended bass image over a very large area - and with level, phase, and frequency fully adjustable via infrared remote control, it’s easy to fine tune to your personal preferences and room acoustics. The components and circuitry in the distinctive elliptical cabinet are all of audiophile standard, and a separate infrared sensor allows the unit to be placed completely out of sight. Available in Black Ash, Maple, Dark Apple or Silver.

SPECIFICATIONS.

Model
PSW 3500
Design
Closed box, downward firing
Drive unit
300 mm (12")
Frequency response at 15°
horizontally off axis ±3 dB
30 Hz - 250 Hz
Crossover frequency
variable/LFE
Amplifiers
300 W built in
Maximum output
110 dB
Magnetic Shielding
Yes
Weight
22.5 kg (49.6 lbs)
Dimensions
(H x W x D)
450 x 600 x 395 mm
17.7 x 23.6 x 15.6 in
Finishes
Black Ash, Maple, Dark Apple or Silver

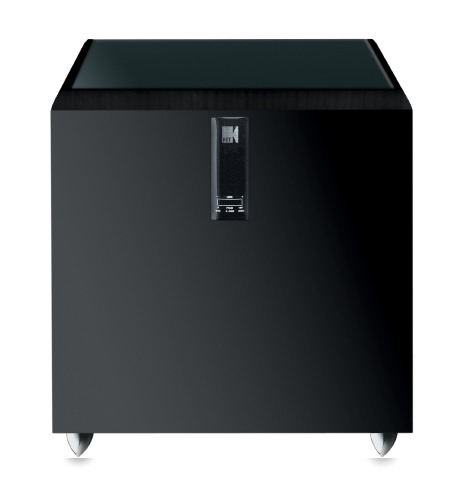

Kef Q Series PSW 4000 Subwoofer
Serious stuff. No less than 500 Watts of high efficiency Class D amplifier power, with a 300mm (12") long-throw driver in a hand finished MDF cabinet. As you would expect, bass extension is more than generous - but what's really impressive is the way the LF response is immaculately controlled.

Output level, phase (infinitely variable) and the low pass filter frequency can be adjusted via radio remote control from anywhere in the home, so the unit can be concealed wherever you please.

SPECIFICATIONS.

Model
PSW 4000
Design
Bass reflex, downward firing
Drive unit
LF: 300 mm (12") long-throw
Frequency response at 15°
horizontally off axis ±3 dB
25 Hz - 250 Hz
LF Corner -6 dB
22 Hz
Amplifier requirements
500 W built in
Sensitivity (2.83V/1m)
Active system
Maximum output
113 dB
Impedance
Active system
Weight
38 kg (83.6 lbs)
Dimensions
(H x W x D)
465 x 495 x 495 mm
18.3 x 19.5 x 19.5 in.
Finishes
Black Ash, Maple or Cherry wood veneer

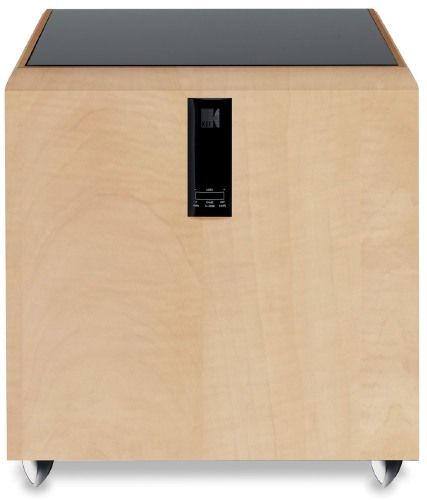

Kef Q Series PSW 5000 Subwoofer
The ultimate powered subwoofer - as it would have to be in order to match the awesome performance standards set by the new Reference Series for which it was designed. How does a 1kW Class D amplifier with a 380mm (15") long-throw woofer sound? Simply devastating is the answer.

The subwoofer can be adjusted via radio remote control from anywhere in the home, so the unit can be concealed wherever you please.

SPECIFICATIONS.

Model
PSW 5000
Design
Bass reflex, downward firing
Drive unit
LF: 380 mm (15") long-throw
Frequency response at 15°
horizontally off axis ±3 dB
18 Hz - 250 Hz
LF Corner -6 dB
16 Hz
Amplifier requirements
1000 W built in
Sensitivity (2.83V/1m)
Active system
Maximum output
118 dB
Impedance
Active system
Weight
60 kg (132 lbs)
Dimensions
(H x W x D)
545 x 590 x 590 mm
21.5 x 23.2 x 23.2 in.
Finishes
Black Ash, Maple or Cherry wood veneer
