PROJECTORS.


            Screenplay Projectors


   Click on the image below to view the back of the Projector.

Screenplay Projectors

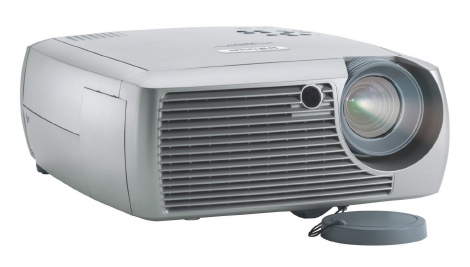

Screenplay SP4805 Home Entertainment Projector.
InFocus® ScreenPlay’s DLP™ projectors are changing the face of home cinema. Not only do they put plasma displays in the shade in terms of image size, they rival them for quality at a fraction of the price. It’s a bargain proposition that transforms the potential of DVD, providing cinema scale and quality images, vibrant in colour and contrast, to a delighted new audience. More and more lovers of picture quality, hitherto seduced by plasma, are discovering the InFocus ScreenPlay experience and have abundant money to spare.

True to form, the ScreenPlay™ 4805 DLP projector will deliver an image four times the size of a Plasma TV at one quarter the cost. As many experts have acknowledged, InFocus ScreenPlay’s projectors offer market-beating performance, specification and value at every price point. Utilising a brand new Texas Instruments® DarkChip2™ 480p 12° DDR DMD chipset, the SP4805 provides true 16:9 DLP projection at a new low price.

The ScreenPlay 4805 uses an exclusive six-segment, four-speed colour wheel, creating vivid, saturated colours allied to an exceptional 2000:1 contrast ratio. Faroudja’s FLI2310 DCDi™ video processor, coupled with cross-colour suppression and per-pixel motion adaptive processing, provides optimum video quality for smooth, natural images. Each SP4805 is calibrated to D65, the industry colour standard, ensuring optimised colour balance straight from the box.

With a video-optimised brightness of 750 ANSI Lumens, the SP4805 is perfect for both installed and portable use in a range of lighting conditions. Installation options include ceiling mount, front/rear projection and tabletop placement. Digital keystone adjustment provides a greater range of placement options, whilst a 5-12V trigger enables automated screen activation. Flexibility is indeed a key feature of ScreenPlay’s designs. Connections are comprehensive, including Composite Video, S-Video, Component Video connectors, together with a universal M1-DA interface enabling full compatibility with DVI and HDMI sources. With a view towards the future the SP4805 is compatible with the upcoming High Definition broadcasts from Sky and the BBC.



SPECIFICATIONS.
Overview:
Home Theatre 16:9 DLP Projector

Video Compatibility:
NTSC, PAL, SECAM, EDTV, HDTV & RGB HDTV (720p, 1035i, 1080i) DVI / HDMI / HDCP for Digital Video & Encrypted Digital Video. Component EDTV (480p, 576p progressive scan) Standard video. 480i, 576i, 576i RGB (SCART Via adaptor). NTSC. NTSC M 4.43 PAL: B, G, H, I, M, N, SECAM M

Video Inputs:
1 x Component Video RCA (HDTV compatible). 1 x S-Video 1 x Composite Video RCA. 1 x M1-DA HDTV Component & Digital Visual Interface (DVI). 1 x HD15 HDTV RGB

Display Projection System:
New TI DarkChip2™ 480p 12° DDR DMD Resolution: 854 x 480 (16:9)

Video Specification:
Faroudja FLI2310 DCDi + Per-Pixel Motion Adaptive Processing. Contrast Ratio (Full On Full Off): 2000:1. Colour Wheel: Proprietary Auto calibrating 6 Segment Colours: 16.7 million simultaneously displayable Lumens: 750 ANSI Lumens optimised for video

Auxiliary Control Connections:
1 x 3.5mm 1-12v screen drop 1 x 3.5mm Stereo Audio Out (Variable) 1 x Stereo RCA Audio Input

Image Specifications:
Focussing Distance: 1.5 m - Infinity. Optimal Image Size: 5-10 Feet (Diagonal). Digital Keystone Correction: +/- 20 degrees vertical. Throw Ratio: 16:9 = 1.77 - 2.13 (Distance / Width)

General Specifications:
Full remote control Placement: Front/Rear & Table Top/Ceiling Modes. Lamp Life 3000 Hours @ 220W (Video Mode).

Dimensions:
W 249mm x D 327mm x H 106mm

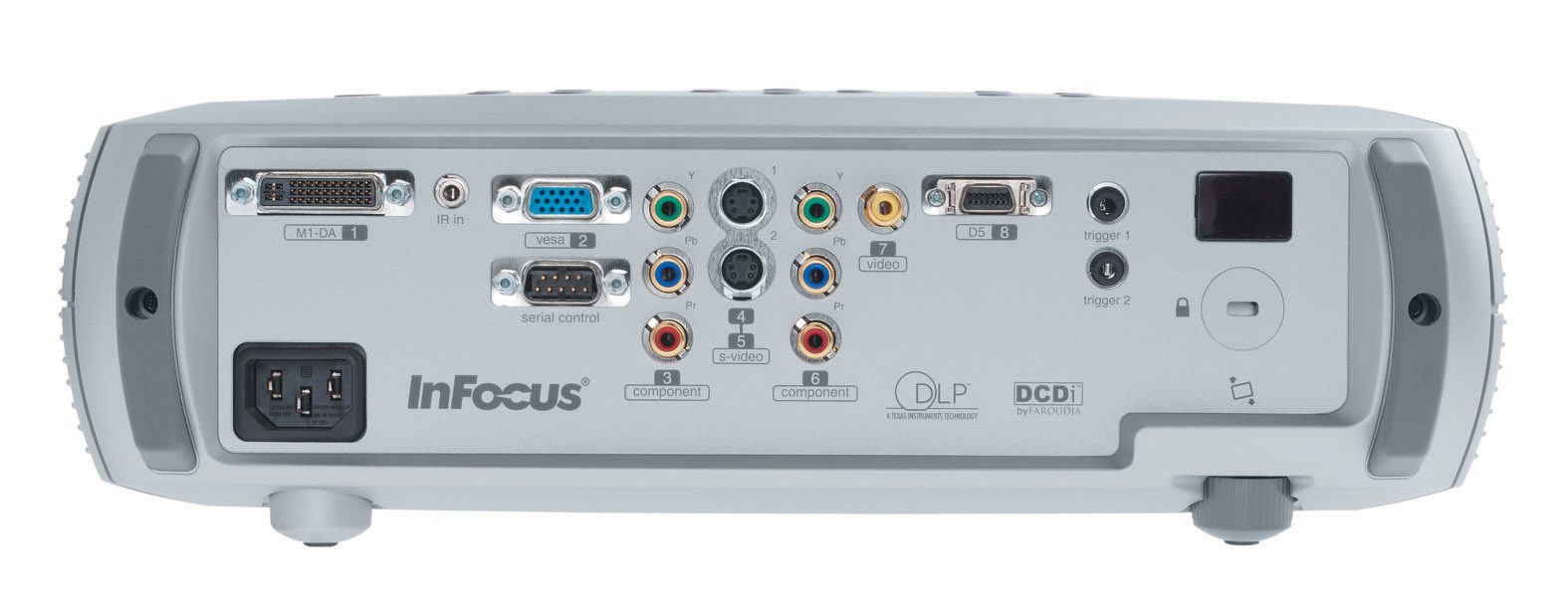

   Click on the image below to view the back of the Projector.

Screenplay Projectors

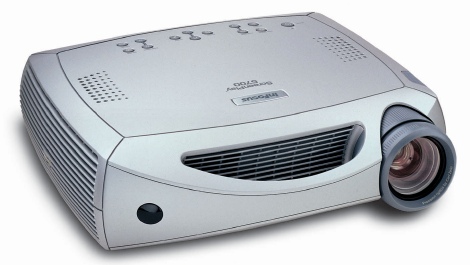

Screenplay SP5700 Home Entertainment Projector.
At the heart of ScreenPlay’s award-winning 5700 is the Matterhorn DLP™ chip from Texas Instruments®, providing true native wide-PAL resolution. Now, for the first time, you can project seamless video of your favourite programs or sporting events in their native resolution, without the scaling normally associated with more conventional projectors. State-of-the-art processing from Texas Instruments and Faroudja deliver uniform brightness, high contrast in black and grey levels, and sharp full-image focus with low distortion.

Video Processing is provided by Faroudja's newest DCDi™ FL2310 chip, offering exceptional colour, detail and noise suppression. For a projector to be exceptional, its designers must first optimise a balance of virtues and decide how to express the results. All ScreenPlay projectors express contrast range or ratio (a measure of the difference between the light and dark elements of a picture) based on "real world" video material, providing a more accurate representation of their capabilities in the home rather than in the lab. The ScreenPlay 5700 provides an excellent ‘real’ contrast ratio of 1400:1, so now even very complex and dimly lit scenes are reproduced with absolute clarity.

Each ScreenPlay 5700 is calibrated to a 65k colour point to provide the most accurate colour reproduction of broadcast and disc-based formats. Little, if any, adjustment is required. Eight individual video inputs are provided: four HDTV Component, two S/Video and one Composite Video input, in addition to an M1 interface that is fully compatible with all Digital Video formats such as DVI and HDMI. All resolutions from 480i to 1080p are supported. With a view towards the future the SP5700 is completely compatible with the upcoming High Definition broadcasts from Sky and the BBC.

For ease of installation, the ScreenPlay 5700 provides multiple video presets, voltage triggers; RS232 and discrete IR control. If the 5700’s inherent quality and packed feature list are not enough to persuade you that it’s the projector to buy, the projectors was voted European Projector of the Year for 2004.



SPECIFICATIONS.
Overview:
Wide PAL 16:9 DLP Projector DVi compatible (EISA Award winner 2003)

Video Compatibility:
NTSC, PAL, SECAM, EDTV, HDTV & RGB HDTV (720p, 1035i, 1080i, 1080p, 1080p-24hz). DVI/HDCP for Digital Video & Encrypted Digital Video. Component EDTV (480p, 576p progressive scan) Standard video. 480i, 576i, 576i RGB (SCART Via adaptor). NTSC. NTSC M 4.43 PAL: B, G, H, I, M, N, SECAM M

Video Inputs:
2 x Component Video Gold RCA (HDTV compatible). 1 x Component Video (D5) HDTV RGB SCART (With Adaptor) 2 x S-Video 1 x Composite Video RCA. 1 x M1-DA HDTV Component & Digital Visual Interface (DVI). 1 x HD15 HDTV RGB

Display Projection System:
New TI Matterhorn DMD 12° Tilt DLP Resolution : 1024 x 576 (16:9).

Video Specification:
Faroudja FLI2310 DCDi Per-Pixel Motion Adaptive Processing. Contrast Ratio: 1400:1. Colour Wheel: Proprietary Auto calibrating 6 segment 5 speed. Colours: 16.7 million simultaneously displayable Lumens: 1000 ANSI Lumens optimised for video Custom designed Carl Zeiss Optics

Control Connections:
1 x 9 Pin D-Sub Male RS232. 1 x 3.5mm IR in Jack. 2 x 3.5mm 1-12v screen drop, 1-12v 4:3 aspect curtain.

General Specifications:
Full remote control Placement: Front/Rear & Table Top/Ceiling Modes. Focussing Distance: 1.5 m - Infinity. Optimal Image Size: 5-12 Feet (Diagonal). Digital Keystone Correction up to +/- 20 degrees. Lamp Life 3000 Hours @ 220W (Video Mode). Throw Ratio: 16:9 = 1.89 - 2.63.

Dimensions:
W 351mm x D 325mm x H 110mm






   Click on the image below to view the back of the Projector.

Screenplay Projectors

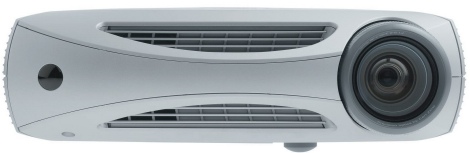

Screenplay SP7205 Home Entertainment Projector.
Combining the Mustang HD2+ DMD from Texas Instruments®, a seven-segment colour wheel, and enhanced DCDi+™ FLI 2310 technology from Faroudja, the InFocus® ScreenPlay 7205 provides impeccable home theatre images. Its native 1280 x 720 resolution creates high definition reality from any source, while a stunning 2200:1 contrast ratio displays crisp, almost three-dimensional images set against true blacks and a detailed greyscale. A Video-optimised brightness of 1100 ANSI lumens, gives you brilliant, dramatic SMPTE (cinema standard) brightness with up to 3.4 metre wide screens.

The HD2+ Mustang DLP™ chip, from Texas Instruments, delivers exceptional video clarity. While the enhanced DCDi+ FLI 2310 from Faroudja delivers progressive scan with enhanced noise reducers, colour enhancers and a unique 2:2 pull down—never seen before in home theatre projectors. This DCDi+ is exclusive to InFocus ScreenPlay and creates the smoothest view, with virtually non-existent scan lines and no discernable flicker. With the growing number of source options: DVD, DVB / Satellite, DVHS, PC Games and Media Players, connectivity is a key feature. The SP7205 provides eight individual video inputs: three HDTV Component, one VGA, two S-Video, one Composite Video and one HD15 input, together with a M1-DA interface fully compatible with all Digital Video formats such as DVI and HDMI. With a view towards the future the SP7205 is naturally compatible with the upcoming High Definition broadcasts from Sky and the BBC.

Each projector has a seven-segment colour wheel calibrated to the industry standard 65K colour point ensuring accurate colour reproduction of all broadcast and disc-based formats. Three installer adjustable colour presets are also provided, offering complete control of image quality, irrespective of source component. Horizontal and Vertical digital keystone adjustments ensure perfect picture geometry.

The Carl Zeiss™ all glass 1.3x zoom lens incorporates a 72mm filter thread in the focus ring which can be used to add neutral density filters, to customize the light output without sacrificing colour or contrast. Full RS232, discrete IR control and two independent 12-volt triggers provide a comprehensive control interface for any Home Theatre installation.



SPECIFICATIONS.
Overview:
Home Theatre 16:9 HD2+ DLP Projector

Video Compatibility:
NTSC, PAL, SECAM, EDTV, HDTV & RGB HDTV (720p, 1035i, 1080i, 1080p, 1080p-24hz). DVI / HDMI / HDCP for Digital Video & Encrypted Digital Video. Component EDTV (480p, 576p progressive scan) Standard video. 480i, 576i, 576i RGB (SCART Via adaptor). NTSC. NTSC M 4.43 PAL: B, G, H, I, M, N, SECAM M

Video Inputs:
2 x Component Video Gold RCA (HDTV compatible). 1 x Component Video (D5) HDTV RGB SCART (With Adaptor) 2 x S-Video 1 x Composite Video RCA. 1 x M1-DA HDTV Component & Digital Visual Interface (DVI). 1 x HD15 HDTV RGB

Display Projection System:
New TI Mustang HD2+ LVDS DMD 12° Tilt DLP Resolution : 1280 x 720 (16:9)

Video Specification:
Faroudja FLI2310 DCDi + Per-Pixel Motion Adaptive Processing. Contrast Ratio: 2200:1. Colour Wheel: Proprietary Auto calibrating 7 Segment Colours: 16.7 million simultaneously displayable Lumens: 1100 ANSI Lumens optimised for video Custom designed Carl Zeiss Optics 72mm Filter Thread (Neutral Density)

Control Connections:
1 x 9 Pin D-Sub Male RS232. 1 x 3.5mm IR in Jack. 2 x 3.5mm 1-12v screen drop, 1-12v 4:3 aspect curtain.

Image Specifications:
Focussing Distance: 1.5 m - Infinity. Optimal Image Size: 5-12 Feet (Diagonal). Digital Keystone Correction: +/- 20 degrees vertical and +/- 9 degrees horizontal. Throw Ratio: 16:9 = 1.67 - 2.08 (Distance / Width)

General Specifications:
Full remote control Placement: Front/Rear & Table Top/Ceiling Modes. Lamp Life 3000 Hours @ 220W (Video Mode).

Dimensions:
W 351mm x D 325mm x H 110mm





Screenplay Projectors

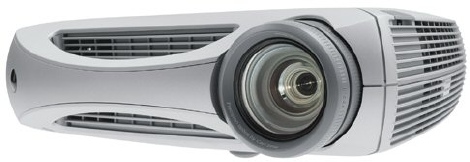

Screenplay SP7210 High Definition 16:9 Dark Chip 3 DLP Projector.
Utilising Texas Instruments'® latest high definition Dark Chip 3 DMD, seven-segment colour wheel, and enhanced DCDi+™ FLI 2310 technology from Faroudja, the InFocus® ScreenPlay 7210 provides home theatre images of impeccable clarity. Its native 1280 x 720 resolution creates high definition reality from any source, while a breathtaking 2800:1 contrast ratio displays crisp, almost three-dimensional images set against true blacks and a detailed greyscale. A Video-optimised brightness of 1400 ANSI lumens, gives you brilliant, dramatic SMPTE (cinema standard) brightness with up to 3.4 metre wide screens.

The Dark Chip 3 DLP™ chip, from Texas Instruments®, delivers exceptional video clarity. While the enhanced DCDi+ FLI 2310 from Faroudja delivers progressive scan with enhanced noise reducers, colour enhancers and a unique 2:2 pull down—never seen before in home theatre projectors. This DCDi+ is exclusive to InFocus ScreenPlay and creates the smoothest view, with virtually non-existent scan lines and no discernable flicker. This Emmy award-winning technology from Texas Instruments and the Academy Award winning Faroudja DCDi+ de-interlacer in combination with renowned InFocus engineering delivers breathtaking reality!

With the growing number of source options: DVD, DVB / Satellite, DVHS, PC Games and Media Players, connectivity is a key feature. The SP7210 provides eight individual video inputs: three HDTV Component, one VGA, two S-Video, one Composite Video and one HD15 input, together with a M1-DA interface fully compatible with all Digital Video formats such as DVI and HDMI. With a view towards the future the SP7210 is naturally compatible with the upcoming High Definition broadcasts from Sky and the BBC.

Each projector has a seven-segment colour wheel calibrated to the industry standard 65K colour point ensuring accurate colour reproduction of all broadcast and disc-based formats. Three installer adjustable colour presets are also provided, offering complete control of image quality, irrespective of source component. Horizontal and Vertical digital keystone adjustments ensure perfect picture geometry. The Carl Zeiss™ all glass 1.3x zoom lens incorporates a 72mm filter thread in the focus ring which can be used to add neutral density filters, to customize the light output without sacrificing colour or contrast.

Full RS232, discrete IR control and two independent 12-volt triggers provide a comprehensive control interface for any Home Theatre installation. A product of years of dedicated engineering from the largest projection manufacturer in the world, the powerful, comprehensively specified ScreenPlay 7210 will deliver spectacular results for years to come.



SPECIFICATIONS.
Video Compatibility:
NTSC, PAL, SECAM, EDTV, HDTV & RGB HDTV (720p, 1035i, 1080i, 1080p, 1080p-24hz). DVI / HDMI / HDCP for Digital Video & Encrypted Digital Video. Component EDTV (480p, 576p progressive scan) Standard video. 480i, 576i, 576i RGB (SCART Via adaptor). NTSC. NTSC M 4.43 PAL: B, G, H, I, M, N, SECAM M

Video Inputs:
2 x Component Video Gold RCA (HDTV compatible). 1 x Component Video (D5) HDTV RGB SCART (With Adaptor) 2 x S-Video 1 x Composite Video RCA. 1 x M1-DA HDTV Component & Digital Visual Interface (DVI). 1 x HD15 HDTV RGB

Display Projection System:
TI 720P+ Dark Chip 3 LVDS DMD 12° Tilt DLP Resolution : 1280 x 720 (16:9)

Video Specification:
Faroudja FLI2310 DCDi + Per-Pixel Motion Adaptive Processing. Contrast Ratio: 2800:1. Colour Wheel: Proprietary Auto calibrating 7 Segment Colours: 16.7 million simultaneously displayable Lumens: 1400 ANSI Lumens optimised for video Custom designed Carl Zeiss Optics 72mm Filter Thread (Neutral Density)

Control Connections:
1 x 9 Pin D-Sub Male RS232. 1 x 3.5mm IR in Jack. 2 x 3.5mm 1-12v screen drop, 1-12v 4:3 aspect curtain.

Image Specifications:
Focussing Distance: 1.5 m - Infinity. Optimal Image Size: 5-12 Feet (Diagonal). Digital Keystone Correction: +/- 20 degrees vertical and +/- 9 degrees horizontal. Throw Ratio: 16:9 = 1.67 - 2.08 (Distance / Width)

General Specifications:
Full remote control Placement: Front/Rear & Table Top/Ceiling Modes. Lamp Life 3000 Hours @ 220W (Video Mode).

Dimensions:
W 351mm x D 325mm x H 110mm

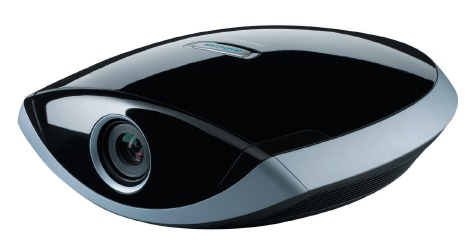

   Click on the image below to view a three quarter view of the Projector.

Screenplay Projectors

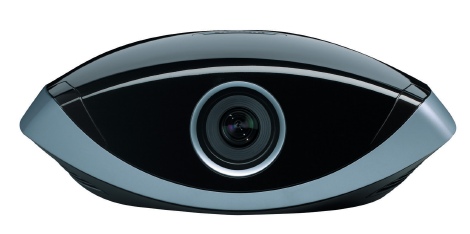

Screenplay SP777 Home Entertainment Projector.
From art house to home theatre, the InFocus® ScreenPlay™ 777 rivals the digital capability of even the best screening rooms. A direct descendent of the advanced systems used in professional digital cinemas today, the three-chip ScreenPlay 777 is designed for those whose requirements are simply defined as the best. Its stunning, crystal-clear image and subtly curved futuristic design will create a breathtaking impression in any room.

The secret to its amazing clarity, high-impact contrast and precise colour - found only in native High-Definition DLP™ technology - is its exclusive optical architecture. Designed to deliver unequalled brightness and the highest contrast possible, the ScreenPlay 777’s increased-contrast pixel design, backed by proprietary optical engine expertise, optimises high-contrast DLP technology from Texas Instruments® (a pinnacle technology recently adopted by the multiplex cinema industry).

Not one, but three High-Definition Mustang™ HD2 DMD optical semiconductor chips power image perfection down to the pixel. A Native 1280 x 720 resolution creates High-Definition imagery from any HD source, while the impact of the 3000:1 calibrated contrast ratio clearly delivers images of exceptional depth set against true blacks and a detailed greyscale. Two thousand video-optimised lumens yield stunningly brilliant, professional cinema-standard brightness for screens up to 4.5 metres wide. To ensure the perfect colour balance each unit is individually calibrated to D65, the film and broadcast industry’s colour standard.

The enhanced FLI2310+ DCDi™ de-interlacer and frame rate converter from Faroudja delivers state-of-the-art progressive scan processing with enhanced noise reducers, colour enhancers and a new, exclusive 2:2 pull down circuitry for flawless viewing without scan lines and discernable flicker. Technology previously exclusive to the professional cinema industry is now made available in the InFocus Screen-Play 777. Connectivity is, as you would expect, comprehensive. The ScreenPlay 777 provides eight individual video inputs: Three HDTV Component, Two S-Video, One Composite Video and One HD15 input, together with the M1-DA interface, which is fully compatible with all Digital Video formats such as DVI and HDMI. All resolutions from 480i to 1080p are supported. With a view towards the future the SP777 is naturally compatible with the upcoming High Definition broadcasts from Sky and the BBC.

Every possible installation option has been catered for with no fewer than seven lens options ranging from an ultra-wide 0.64:1 lens to a long-throw 5.6:1 zoom lens. Irrespective of room size or installation, a matching lens is available. All lenses provide motorised focus adjustment, whilst all zoom lenses provide fully motorised adjustments of: Zoom, Focus, Horizontal and Vertical lens shift. A 1.80 - 2.40:1 lens is the standard inclusion if no specific lens is specified. InFocus ScreenPlay projectors are reliable and durable, delivering the best-possible projection with easy set-up and uncomplicated functionality. The ScreenPlay 777 is stunning evidence of this continuing commitment to perfection.



SPECIFICATIONS.
Overview:
Home Theatre 3 Chip 16:9 HD2 DLP Projector

Video Compatibility:
Component and RGB HDTV (720p, 1035i, 1080i, 1080p-24Hz), 24p DVI with HDCP for digital video and encrypted digital video Component EDTV (480p, 576p progressive scan) Component, Composite and S-Video standard video (480i, 576i, 576i) RGB SCART with adapter NTSC, NTSC M 4.43, PAL: B, G, H, I, M, N; SECAM: M] Includes 60Hz to 48Hz conversion of NTSC film-based content

Video Inputs:
2-Component (RCA / BNC): HDTV, EDTV, and Standard TV component RCA (3 x Gold RCA) BNC (3 x 75 Ohm BNC) 1-Component (D5): HDTV, EDTV, Standard TV, and RGB SCART with adapter 2-S-Video: Standard TV Video 1-Composite (RCA): Standard TV Video 1-DVI (M1-DA): HDTV RGB, HDTV Component, Digital Visual Interface (DVI) 1-HD15 VESA: HDTV RGB, HDTV component, and computer

Projection System:
TI HD2 12° LVDS DMD’s Resolution: 3 Chip HD2 DLP 1280 x 720 (16:9) 720p Native Red, Green, Blue Colour Wheel: None RGB Enhanced Colour: 6500°K +/-500°, D65 calibrated for video performance

Image Specification:
Contrast Ratio (video calibrated): 3000:1 full on/full off Lamp: 250-Watt High Pressure Mercury (1500 hours) with LampSync™ stability pulse Video Optimised Lumens: 2000 ANSI max Modes: Front/rear/ceiling mode Focusing Distance: 8.2'/2.5m to 43'/13m (standard lens) Keystone Correction: Digital, up to +/- 15° Vertical SMPTE Brightness: Up to 15 feet/ 4.57m wide, 16:9 screen

Lens Control:
Motorized Lens Shift Vertical: -50% to +120% Horizontal: +/- 20%

Standard Lens:
1.44 - 1.80:1 Power zoom and focus, 1.25 x zoom

Lens Options:
0.64:1 Power focus, no zoom, no lens shift 0.96:1 Power focus, no zoom, no lens shift 1.20 - 1.44:1 Power zoom and focus, 1.20 x zoom 1.80 - 2.40:1 Power zoom and focus, 1.33 x zoom 2.40 - 3.60:1 Power zoom and focus, 1.50 x zoom 3.60 - 5.60:1 Power zoom and focus, 1.55 x zoom

Auxiliary Inputs:
4-IR sensors: IR Remote Control 1-9-pin Dsub Male: RS-232 1-3.5mm Mini-Jack: IR Repeater (SpeakerCraft / Xantech compatible) 2-3.5mm Mini-Jack: 1-12v screen-drop, 1-12v 4:3 aspect "curtains"

Weight:
44.4lbs (20.2 kg)

Dimensions:
W 603mm x D 722mm x H 217mm
