Hitachi 42" Plasma Screen Televisions

Hitachi
Best Buy LogoHitachi Best Buy LogoBest But LogoBest But Logo

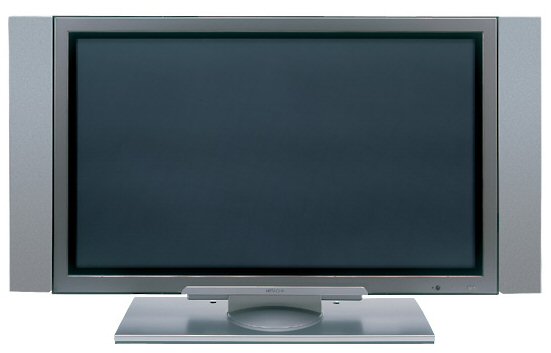

Hitachi 42PD5200 42" Plasma Display
This flagship 42" (106cmV) plasma display combines stunning design with cutting edge technology. Just 95mm deep, you can choose from a range of four combinations to suit your requirements. Hitachi have a plasma solution that will fit your needs.

The 42PD5200 comes with both video board and tuner interface board, plus speakers - perfect for home usage and for those who are looking for a self contained system.


FEATURES:
  • • 42" (106cmV) Plasma Screen

  • • Widescreen Viewing Ratio

  • • Incorporates Hitachi's new H3 and I2 Intelligent Image Chip Technology

  • • Pixel Pitch - 0.90 (horizontal) x 0.51 (vertical) mm

  • • 16.7 Million Colours for clarity and depth (256 grey levels)

  • • Utilises High Resolution ALIS (Alternative Lighting of Surface) Technology

  • • Incorporates TRUBASS Technology

  • • Digital Colour Management - True Colour Reproduction

  • • Panel Luminance of 1100cd/m² for high brightness

  • • Contrast of 1000:1 to produce superior blacks

  • • 1 bit Digital Audio Amp

  • • 2 x 12W Audio Power Output

  • • PC Analogue Input (Available on AV3000E Multi-media box)

  • • RS232C Control

  • • Detachable Speakers


TECHNICAL SPECIFICATIONS:



Screen Size   42" / 105.9cmV
Screen Type   Plasma
Pixels   1024 x 1024
Pixel Pitch   0.90 (horizontal) x 0.51mm (vertical)
Colours   16.7 million
Gray Level   256
Panel Luminance (typical)   1100 cd/m²
Contrast   1000:1

Audio


RMS Output   2 x 12W
Surround Sound   Matrix
TRUBASS   Bullet gif
1 bit Digital AMP   Bullet gif

Connections


Connector RGB1 (digital)   24 pin DVI
Connector RGB (analogue)   15-pin D-sub
Control (RS232C)   9 pin D-sub, RS232C 9600bps
Audio for RGB1   L/R mini-headphone jack
Audio for RGB2   L/R mini-headphone jack

Computer Input


RGB1   15 pin D-sub
Video Format   RGB analogue, 0.7Vp-p, 75 Ω
Sync Level   H/V Separate Sync and H/V Composite Sync: TTL Level
Sync on Green: 0.3Vp-p, 75 Ω
Frequency   Horizontal: 31~106kHz, Vertical: 50~85kHz
Audio   Stereo, 470mV High Impedance
RGB2   15 pin D-sub
Video Format   RGB digital, TMDS
Frequency   Horizontal: 31~60kHz, Vertical: 56~85Hz
Audio   Stereo, 470mV 270k Ω

Controls


RGB   Contrast, Brightness, Display Size, Vertical Position, Horizontal Position, Clock, Phase
Colour Temperature   COOL: 9,300K, NORMAL: 7,600K, WARM: 6,500K
Black & White 5,400K, USER: manual adjustment
Audio   Volume, Balance, Treble, Bass, Mute
Remote Control   Power, Volume Up/Down, Mute, Input Select, Adjustment Menu, ID select
RS232C   9 Pin D-sub Control through PC

General


Voltage   AC 100~240V/50~60Hz
Power Consumption   365W
Stand-by   < 2W
Weight   34.9 Kg (excluding speakers/stand)
Dimensions (WxHxD)   1030 x 636 x 91mm (excluding speakers and stand)
Stand   Optional (swivel) CMPAD25

Operating Condition


Temperature   5~35°
Humidity   20~80%RH (non-condensing)
Pressure   800~1114hPa (reference value: max altitude 1888m

Certification


Safety   EN60065
EMI   EN50013 class B
CE   EN55020, EN61000-3-2, EN61000-3-3

Features


Interface board fitting in the slot of video board allows PDP monitor to be operated by AVC BOX AVC BOX (AV3000E).

24 pin DVI connector on original PDP monitor and 8 pin DIN on interface board are connected with AVC BOX.

Connector   8 pin DIN

TUNER BOARD
Technical Specifications



Features


Connector   RF Input
Input RF Frequency   45MHz~890MHz
Sound System   I/BGH/DK/LL
NICAM/A2   Bullet gif / Bullet gif
Teletext   Bullet gif
Fastext/Toptext   Bullet gif / Bullet gif
WSS   16:9, C16:9 (Letterbox),
T16:9L, C14:9L, T14:9L, 14:9,
14:9 Zoom, 4:3, Panoramic
Freeze   Bullet gif only on TV
NR on Positions   Bullet gif
PinP and PandP   4 Pictures (main left and sub 3 small
pictures on the right)
12 pictures

VIDEO BOARD
Technical Specifications



Connectors


AV1   Phono x 4 (Component input and Composite input)
Phono x 2 (Audio L and R input)
AV2   Phono x 4 (Component or RGB input,
and Composite input)
Phono x 2 (Audio L and R input)
AV3   Phono x 2 (Composite input and Composite output)
S-terminal input (S-Video)
Phono x 2 (Audio L and R input)
AV4   SCART (RGB input, Composite input, Composite or
TV output, Audio L/R input and output, Mode select,
Fast blanking)

Input Signal Format


Component   480i, 480p, 576i, 575p, 720p(60), 1080i (50/60)
Composite/S-Video   PAL/SECAM/NTSC3.58/NTSC4.43
RGB   Normal Video RGB (50/60)

Features


PinPC and PandP   2 pictures (left half and right half)
PinPC (large picture PC and
small picture on bottom right)
COMB Filter   3 line for PAL, 3D for NTSC




HitachiHitachi HDTV Logo
Best buy awardBest Buy AwardBest Buy Award

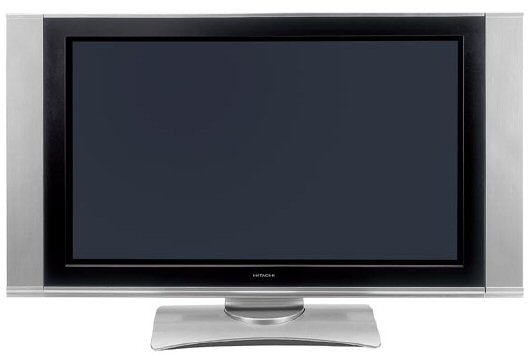

Hitachi 42PD7200 42" Plasma Display
Hitachi's new 106cm (42") visible Plasma Widescreen Television combines PICTURE MASTER Technology with stunning design. Offering a whole range of features, this outstanding Plasma TV will fit perfectly into any environment.

When only the very best will do, the 42PD7200 is the choice for you. Suited to any environment, particularly in open spaces. With its in-built motorised swivel stand, you get perfect viewing and crystal clear sound from wherever you're sitting or standing.


FEATURES:
  106cm Visible Plasma Widescreen Television
  PICTURE MASTER Advanced Processor
  HDTV Ready
  New H4 Panel
  Ultra Slim design
  Motorised Swivel Stand
  High Quality Screen Resolution - 1024 x 1024 pixels
  3 x SCART Sockets (RGB)



TECHNICAL SPECIFICATIONS:



Screen size   106cm Visible 16:9 aspect ratio
Screen Type   Plasma
Resolution (Pixels)   1024x1024
Advanced Image Technology   PICTURE MASTER
Panel Luminance (Typical)   1200cd/m2
Contrast   1000:1
HDTV Ready   Bullet gif
PaP/PaT/PinPC   Bullet gif / Bullet gif / Bullet gif
Pixel Pitch   0.90 (horizontal) x 0.51mm (vertical)
Aspect Ratio   16:9

Tuner


Programmes   200
Cable/Hyperband   Bullet gif
UK Specifications   PAL I I'
European Specifications   PAL / SECAM / I I' / BG / H / L L' / DK
VHF   Bullet gif
UHF   Bullet gif
Text Pages   250

Video Signal Input


PAL/PAL60   Bullet gif / Bullet gif
SECAM   Bullet gif
NTSC4.43/3.58   Bullet gif / Bullet gif

Video Connections


HDMI Input (HDCP)   Bullet gif / Bullet gif
Scart Socket (RGB)   3 (2)
Component Video   Bullet gif
Progressive Input (PAL/NTSC)   Bullet gif
S-VHS Video   Bullet gif
Composite Video   Bullet gif
Video Line Out (Phono)   Bullet gif

Audio


RMS Output   2 x 12W
Sound Effect   Matrix
1 Bit Digital Amp   Bullet gif
Dynamic Bass   Bullet gif

Audio Connections


Audio Input   Bullet gif
PC Audio Input   Bullet gif
Audio Line Out   Bullet gif
Removable Speakers   Bullet gif
Headphone Socket   Bullet gif
Speaker Terminals   Bullet gif

Computer Input


DVI/HDCP   Bullet gif / Bullet gif
15-pin D-sub   Bullet gif

General


Power Consumption/Standby   380W/<3W
Weight (Kg) (inc stand and speakers)   42.5
Weight (Kg) (exc stand and speakers)   37
Dimensions (WxHxD) (mm) (inc stand and speakers)   1230 x 756 x 348
Dimensions (WxHxD) (mm) (exc stand and speakers)   1050 x 675 x 96
Swivel Stand/Motorised   Bullet gif / Bullet gif
OSD Languages   UK, Ge, Fra, Tr, Ita, Spa, Dan, Swe, Cro, Dut, Por, Slo
IB Languages   UK, F, GE, IT, SP
EAN Code   4902530722352

Certification


Safety   EN60065
EMI   EN50013
CE   EN55020, EN61000-3-2, EN61000-3-3

Options Available


Wall Mount   PWT001




HitachiHitachi HDTV Logo

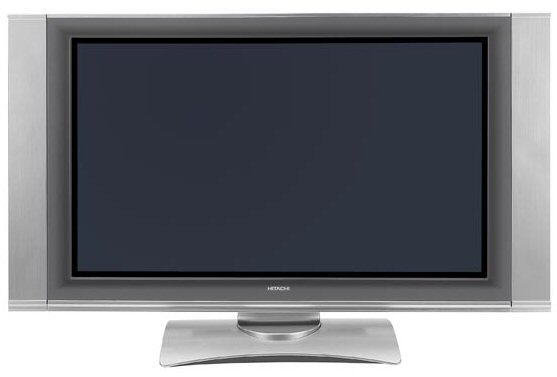

Hitachi 42PD7500 42" Plasma Display
Hitachi's new 106cm visible Plasma Widescreen Television combines PICTURE MASTER Technology with stunning design. Offering a whole range of features, this outstanding Plasma TV will fit perfectly into any environment.


FEATURES:
  106cm Visible Plasma Widescreen Television
  PICTURE MASTER Advanced Processor
  HDTV Ready
  Built-in Analogue and Digital TV Tuners
  Common Interface Socket for Pay TV Services
  Motorised Swivel Stand
  High Quality Screen Resolution - 1024 x 1024 pixels
  HDMI, DVI & Component sockets
  Side Input Terminal
  Panel Luminance of 1200 cd/m2
  Contrast Ratio 1000:1
  Detachable Speakers
  2 x 12W RMS Output
  Headphone Socket for Personal Viewing



TECHNICAL SPECIFICATIONS:



Screen Size   106cm Visible
Screen Type   Plasma
Resolution (Pixels)   1024x1024
Advanced Image Technology   PICTURE MASTER
Panel Luminance (Typical)   1200cd/m2
Contrast Ratio   1000:1
HDTV Ready
PaP/PaT/PinPC   / /
Pixel Pitch (H x V) (mm)   0.90 x 0.51
Aspect Ratio   16:9
Number of Colours   68.6 Billion
Number of Greyscales   4093 for each primary colour

Analogue Tuner


Programmes   200
Cable/Hyperband   /
UK Specifications   PAL I I'
European Specifications   PAL / SECAM / I I' / BG / H / L L' / DK
VHF
UHF
Text Pages   250

Video Signal Input


PAL/PAL60   /
SECAM
NTSC4.43/3.58   /

Video Connections


HDMI Input (HDCP)   /
DVI/HDCP   /
SCART Socket (RGB)   2 (1)
Component Video
Progressive Input (PAL/NTSC)
S-VHS Video
Composite Video
Video Line Out (Phono)

Audio


RMS Output   2 x 12W
Sound Effect   Matrix
1 Bit Digital Amp
Dynamic Bass

Audio Connections


Audio Input
PC Audio Input
Audio Line Out
Removable Speakers
Headphone Socket
Speaker Terminals

Computer Input


DVI
15-pin D-sub

General


Power Consumption/Standby   380W/<3W
Weight (Kg) (inc stand and speakers)   42.5
Weight (Kg) (exc stand and speakers)   37
Dimensions (WxHxD) (mm) (inc stand and speakers)   1230 x 756 x 348
Dimensions (WxHxD) (mm) (exc stand and speakers)   1050 x 675 x 110
Swivel Stand/Motorised   /
OSD Languages   UK, F, GE, IT, SP, SWE, NOR, GRE, TUR, DUT
IB Languages   UK
EAN Code   4902530736557

IDTV-DVB Integrated


Digital Teletext
Interactive Services
EPG (Now/Next)
Programme Reminder & Event Timer
Multi Language Subtitle Decoding and Display
CA Socket

Certification


Safety   EN60065
EMI   EN50013
CE   EN55020, EN61000-3-2, EN61000-3-3

Optional Accessories


Wall mount   PWT002
