Fujitsu 50" Plasma Television and Displays.

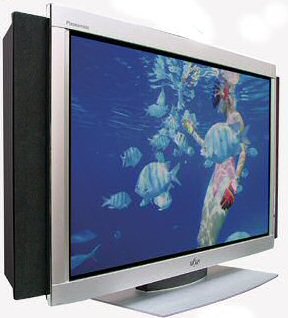

Fujitsu P50XHA4OUS 50" Plasma Display
The P50XHA40US combines a 1366x768 high resolution panel with the AVM-II video processor and a digital HDMI connection with HDCP content protection. With pictures described by Hi-Fi News as ‘the least plasma-like’ of any they had seen, largely thanks to the transparency of the AVM II processor, the P50XHA40 is equally at home as a digital TV or as the centrepiece of a high-end home theatre set up.
SPECIFICATIONS.
| MODEL |
P50XHA40US |
| Monitor type |
| BEZEL COLOUR |
SILVER |
| DISPLAY PANEL |
SCREEN SIZE (DIAGONAL) |
W 1,106 x H 622 mm (50") |
| ASPECT RATIO |
16:9 |
| NUMBER OF PIXELS |
1,366 (H) x 768 (V) |
| DISPLAYABLE COLOURS |
1.07 Billion |
| DIMENSIONS* |
Display |
1,216 (W) x 726 (H) x 100 (D) mm |
| |
AV Selector |
- |
| WEIGHT |
Display |
45.0kgs |
| AV Selector |
- |
| POWER SOURCE |
110-240V AC 50/60HZ |
| POWER CONSUMPTION |
Display |
4.5-2.0A |
| AV Selector |
- |
| CORRESPONDING SIGNALS |
RGB MODE |
VGA, WVGA, SVGA, XGA, WXGA, UXGA |
| DVI-D MODE |
VGA, WVGA, SVGA, XGA |
| COMP. VIDEO MODE |
480i, 576i, 480p, 576p,720p, 1080i |
| VIDEO MODE |
NTSC, PAL, SECAM, PAL60,
N-PAL, M-PAL, 4.43NTSC |
| TV MODE |
- |
| CONTROL |
Dsub 9PIN (2ROW TYPE: MALE) |
| OPERATING CONDITIONS |
TEMPERATURE |
0°C-40°C |
| RELATIVE HUMIDITY |
20-80% (NOT CONDENSING) |
| REGULATIONS |
SAFETY |
Display |
UL6500, C-UL, EN60065, IEC60065, AS/NZS 3548 |
| AV Selector |
- |
| EMC |
Display |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024 |
| AV Selector |
- |

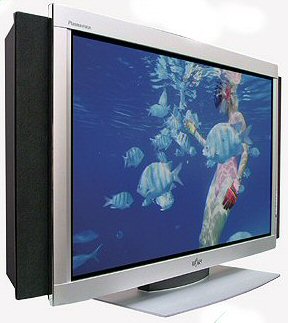

Fujitsu P50XTS4OGS 50" Plasma Television
A TV tuner version of the P50XHA40GS, the P50XTS40GS offers the same connectivity but on a separate selector box that includes an analogue tuner for terrestrial TV reception.
SPECIFICATIONS.
| MODEL |
P50XTS40GSS |
Separate Tuner/Connectivity
Box type |
| BEZEL COLOUR |
SILVER |
| DISPLAY PANEL |
SCREEN SIZE (DIAGONAL) |
W 1,106 x H 622 mm (50") |
| ASPECT RATIO |
16:9 |
| NUMBER OF PIXELS |
1,366 (H) x 768 (V) |
| DISPLAYABLE COLOURS |
1.07 Billion |
| DIMENSIONS* |
Display |
1,216 (W) x 726 (H) x 100 (D) mm |
| |
AV Selector |
430 (W) x 95 (H) x 350 (D) mm |
| WEIGHT |
Display |
45.0kgs |
| AV Selector |
5.0kgs |
| POWER SOURCE |
110-240V AC 50/60HZ |
| POWER CONSUMPTION |
Display |
4.5-2.0A |
| AV Selector |
0.45-0.27A |
| CORRESPONDING SIGNALS |
RGB MODE |
VGA, WVGA, SVGA, XGA, WXGA, UXGA |
| DVI-D MODE |
VGA, WVGA, SVGA, XGA |
| COMP. VIDEO MODE |
480i, 576i, 480p, 576p,720p, 1080i |
| VIDEO MODE |
NTSC, PAL, SECAM, PAL60,
N-PAL, M-PAL, 4.43NTSC |
| TV MODE |
PAL, SECAM |
| CONTROL |
Dsub 9PIN (2ROW TYPE: MALE) |
| OPERATING CONDITIONS |
TEMPERATURE |
0°C-40°C |
| RELATIVE HUMIDITY |
20-80% (NOT CONDENSING) |
| REGULATIONS |
SAFETY |
Display |
UL6500, C-UL, EN60065, IEC60065, AS/NZS 3548 |
| AV Selector |
UL6500, C-UL, EN60065 |
| EMC |
Display |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024 |
| AV Selector |
FCC Part 15 Class B, ICES-003 Class B, EN55013, EN55020, AS/NZS1053 |
|
