Fujitsu 42" Plasma Television and Displays.

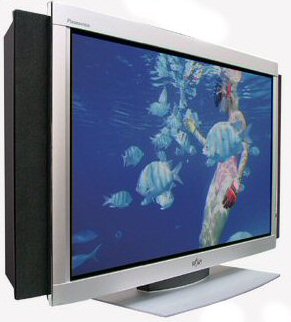

Fujitsu P42VHA4OES 42" Plasma Display
The P42VHA40 marries a 852x480 pixel VGA panel with the AVM-II video processor. The P42VHA40 is designed to bring out the best of DVD, standard digital TV and gaming consoles.
SPECIFICATIONS.
| MODEL |
P42VHA40ES |
| Monitor type |
| BEZEL COLOUR |
SILVER |
| DISPLAY PANEL |
SCREEN SIZE (DIAGONAL) |
W 922 x H 522 mm (42") |
| ASPECT RATIO |
16:9 |
| NUMBER OF PIXELS |
852 (H) x 480 (V) |
| DISPLAYABLE COLOURS |
1.07 Billion |
| DIMENSIONS* |
Display |
1,039 (W) x 640 (H) x 87 (D) mm |
| |
AV Selector |
- |
| WEIGHT |
Display |
31.5kgs |
| AV Selector |
- |
| POWER SOURCE |
110-240V AC 50/60HZ |
| POWER CONSUMPTION |
Display |
4.2-1.8A |
| AV Selector |
- |
| CORRESPONDING SIGNALS |
RGB MODE |
VGA, WVGA, SVGA, XGA, WXGA, UXGA |
| DVI-D MODE |
VGA, WVGA, SVGA, XGA |
| COMP. VIDEO MODE |
480i, 576i, 480p, 576p,720p, 1080i |
| VIDEO MODE |
NTSC, PAL, SECAM, PAL60,
N-PAL, M-PAL, 4.43NTSC |
| TV MODE |
- |
| CONTROL |
Dsub 9PIN (2ROW TYPE: MALE) |
| OPERATING CONDITIONS |
TEMPERATURE |
0°C-40°C |
| RELATIVE HUMIDITY |
20-80% (NOT CONDENSING) |
| REGULATIONS |
SAFETY |
Display |
UL6500, C-UL, EN60065, IEC60065 |
| AV Selector |
- |
| EMC |
Display |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024, AS/NZS 3548 |
| AV Selector |
- |

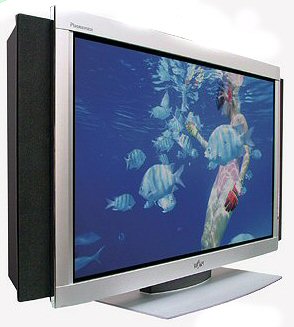

Fujitsu P42HHA4OUS 42" Plasma Display
The award-winning P42HHA40, matches the 1024x1024 high-resolution ALiS panel with the AVM-II video processor and a digital HDMI connection with HDCP content protection. The P42HHA40 is capable of bringing incredible depth to standard video and TV sources, while also being ready for the arrival of new high definition TV services.
SPECIFICATIONS.
| MODEL |
P42HHA40US |
| Monitor type |
| BEZEL COLOUR |
SILVER |
| DISPLAY PANEL |
SCREEN SIZE (DIAGONAL) |
W 922 x H 522 mm (42") |
| ASPECT RATIO |
16:9 |
| NUMBER OF PIXELS |
1,024 (H) x 1,024 (V) |
| DISPLAYABLE COLOURS |
1.07 Billion |
| DIMENSIONS* |
Display |
1,039 (W) x 640 (H) x 87 (D) mm |
| |
AV Selector |
- |
| WEIGHT |
Display |
31.5kgs |
| AV Selector |
- |
| POWER SOURCE |
110-240V AC 50/60HZ |
| POWER CONSUMPTION |
Display |
4.2-1.8A |
| AV Selector |
- |
| CORRESPONDING SIGNALS |
RGB MODE |
VGA, WVGA, SVGA, XGA, WXGA, UXGA |
| DVI-D MODE |
VGA, WVGA, SVGA, XGA |
| COMP. VIDEO MODE |
480i, 576i, 480p, 576p,720p, 1080i |
| VIDEO MODE |
NTSC, PAL, SECAM, PAL60,
N-PAL, M-PAL, 4.43NTSC |
| TV MODE |
- |
| CONTROL |
Dsub 9PIN (2ROW TYPE: MALE) |
| OPERATING CONDITIONS |
TEMPERATURE |
0°C-40°C |
| RELATIVE HUMIDITY |
20-80% (NOT CONDENSING) |
| REGULATIONS |
SAFETY |
Display |
UL6500, C-UL, EN60065, IEC60065 |
| AV Selector |
- |
| EMC |
Display |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024, AS/NZS 3548 |
| AV Selector |
- |

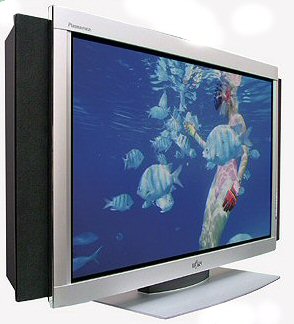

Fujitsu P42HTS4OGS 42" Plasma Television
A TV tuner version of the P42HHA40, the P42HTS40 offers the same connectivity but on a separate selector box that includes an analogue tuner for terrestrial TV reception.
SPECIFICATIONS.
| MODEL |
P42HTS40GS |
Separate Tuner/Connectivity
Box type |
| BEZEL COLOUR |
SILVER |
| DISPLAY PANEL |
SCREEN SIZE (DIAGONAL) |
W 922 x H 522 mm (42") |
| ASPECT RATIO |
16:9 |
| NUMBER OF PIXELS |
1,024 (H) x 1,024 (V) |
| DISPLAYABLE COLOURS |
1.07 Billion |
| DIMENSIONS* |
Display |
1,039 (W) x 640 (H) x 87 (D) mm |
| |
AV Selector |
430 (W) x 95 (H) x 350 (D) mm |
| WEIGHT |
Display |
31.5kgs |
| AV Selector |
5.0kgs |
| POWER SOURCE |
110-240V AC 50/60HZ |
| POWER CONSUMPTION |
Display |
4.2-1.8A |
| AV Selector |
0.45-0.27A |
| CORRESPONDING SIGNALS |
RGB MODE |
VGA, WVGA, SVGA, XGA, WXGA, UXGA |
| DVI-D MODE |
VGA, WVGA, SVGA, XGA |
| COMP. VIDEO MODE |
480i, 576i, 480p, 576p, 720p, 1080i |
| VIDEO MODE |
NTSC, PAL, SECAM, PAL60,
N-PAL, M-PAL, 4.43NTSC |
| TV MODE |
PAL, SECAM |
| CONTROL |
Dsub 9PIN (2ROW TYPE: MALE) |
| OPERATING CONDITIONS |
TEMPERATURE |
0°C-40°C |
| RELATIVE HUMIDITY |
20-80% (NOT CONDENSING) |
| REGULATIONS |
SAFETY |
Display |
UL6500, C-UL, EN60065, IEC60065 |
| AV Selector |
UL6500, C-UL, EN60065 |
| EMC |
Display |
FCC Part 15 Class B, ICES-003 Class B, EN55022 Class B, EN61000-3-2, EN61000-3-3, EN55024, AS/NZS 3548 |
| AV Selector |
FCC Part 15 Class B, ICES-003 Class B, EN55013, EN55020, AS/NZS1053 |
|
