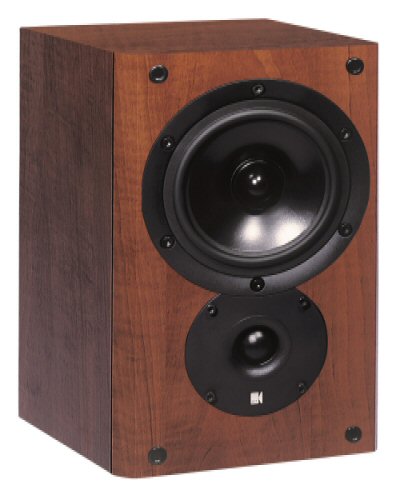

CRESTA 10.
The Cresta 10, a compact stand-mount or bookshelf speaker matches
the 25mm tweeter with a 130mm (51/2) mid/bass driver, housed
in a reflex ported 8.5 litre cabinet to giveamazingly low frequency
reproduction.
The new Cresta Series, available in Maple, Dark Apple or Black Ash,
will change your perceptions of inexpensive loudspeakers. |
SPECIFICATIONS.
Design: 2 way bookshelf
Drive units HF: 25 mm (1”) silk dome tweeter
LF: 130 mm (5.25”) pp coated cone
Frequency response at ±3 dB 52 Hz - 20 kHz
Crossover frequency 3 kHz
Amplifier requirements: 10 - 100W
Sensitivity: (2.83 V / 1m) 90 dB
Impedance: 8 Ohms
Maimum output: 108 dB
Magnetice shielding: No
Internal Volume: 8.5 litres
Weight: 5 kg (11 lbs)
Dimensions: *(H x W x D) 305 x 185 x 242 mm 12 x 7.3 x 9.5 in.
Click on the image above for an enlarged view.
|
CRESTA 20. Cresta 20c, a magnetically shielded centre speaker, provides the option for home theatre applications.The rear ported cabinet contains twin 100mm (4”) long throw mid/bass drivers with the same 25mm silk dome tweeter, and is timbre matched to the rest of the range.
The new Cresta Series, available in Maple, Dark Apple or Black Ash, will change your perceptions of inexpensive loudspeakers. |
SPECIFICATIONS.
Design 2 way centre
Drive units HF: 25 mm (1”) silk dome tweeter
LF: 100 mm (4”) pp coated cone
Frequency response at ±3 dB 50 Hz - 20 kHz
Crossover frequency: 3 kHz
Amplifier requirements: 10 - 120W
Sensitivity: (2.83 V / 1m) 90 dB
Impedance: 8 Ohms
Maimum output: 108 dB
Magnetice shielding: Yes
Internal Volume: 7.2 litres
Weight: 6 kg (13.2 lbs)
Dimensions * (H x W x D) 145 x 405 x 210 mm 5.7 x 15.9 x 8.2 in.
Click on the image above for an enlarged view.
|

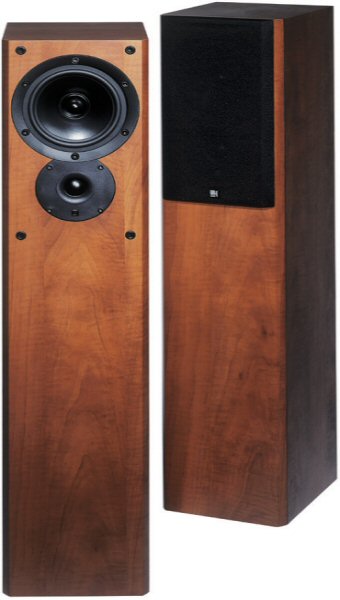

CRESTA 30.
The flagship product in the range, the Cresta 30, is a rear ported bass reflex floorstanding speaker. Using the same drive units as the Cresta 10, but with enhanced low frequency reproduction , makes these the perfect introduction to floorstanding hi-fi speakers or the front channels of a fully matched home theatre system.
The new Cresta Series, available in Maple, Dark Apple or Black Ash, will change your perceptions of inexpensive loudspeakers. |
SPECIFICATIONS.
Design 2 way floorstanding
Drive units HF: 25 mm (1”) silk dome tweeter
LF: 130 mm (5.25”) pp coated cone
Frequency response at ±3 dB 45 Hz - 20 kHz
Crossover frequency: 3 kHz
Amplifier requirements: 10 - 100W
Sensitivity: (2.83 V / 1m) 90 dB
Impedance: 8 Ohm
Maimum output: 108 dB
Magnetice shielding: No
Internal Volume: 18 litres
Weight: 11 kg (24.2 lbs)
Dimensions: *(H x W x D) 825 x 185 x 242 mm 32.4 x 7.2 x 9.5 in.
