AUDIO PRO IMAGE SERIES LOUDSPEAKERS Audio Pro Image 12 High Quality Mini-Monitor As the Image Series’ most compact loudspeaker, the Image 12 is an exceptionally versatile, high-quality mini-monitor. Like its bigger range-mates, the Image 12 utilises a 1" silk dome tweeter mounted within a double-skinned isolation chamber. The tweeter actually ‘floats’, suspended against the speaker box, resulting in improved linearity and lower distortion. A 4.5” woofer with phase plug for lower distortion completes the driver complement. When combined with the matching B1.28 or B1.36 active subwoofers, the performance of the Image 12 assumes a whole new dimension. Within a home theatre system, the Image 12 is suitable for both front and surround channel applications and is voice-matched to the Image 22 centre channel speaker. The Image 12 is finished in a high-gloss hand-lacquered black. Heavy-duty gold-plated bi-wiring posts ensure optimum connection. Integral wall brackets and fully shielded drivers permit numerous placement options.
SPECIFICATIONS.
Applications:
Frequency Response In-Room:
Sensitivity:
Impedance:
Placement:
Features:

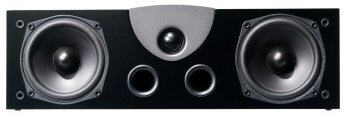

Dimensions: Audio Pro Image 22 Voice Matched Centre Channel Voice matched with the Image 12 and Image 44, the Image 22 centre speaker will create a soundstage of exceptional width and clarity. Much like the Image 12 and 44, the Image 22 utilises a 1" silk dome tweeter ‘floats’ within an aluminium double chamber. The result is improved linearity and lower distortion. Two 4.5” woofers with distortion reducing phase plugs complete the driver complement. The Image 22 comes in a high-gloss hand-lacquered black finish. Heavy-duty gold-plated bi-wiring posts ensure optimum connection. All drivers are fully shielded. Integral wall brackets permit the Image 22 to be mounted directly onto the wall, above or below a screen or TV monitor.
SPECIFICATIONS.
Applications:
Driver Array:
Frequency Response In-Room:
Sensitivity:
Impedance:
Features:

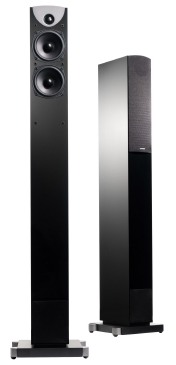

Dimensions: Audio Pro Image 44 Ultra Slender Floor Stand Loudspeaker The super-slim Image 44 is one of the most discrete floor-standing loudspeakers available. Developed for outstanding music and home theatre sound reproduction, the 5”wide Image 44 utilises a 1" silk dome tweeter mounted within a floating aluminium double chamber. Its two 4.5” woofers work within a quarter-wave pipe. Together these elements dramatically improve linearity, lower distortion and improve efficiency and transient response. The cabinet design of the Image 44 also permits all drive units to be located at their optimal listening height. To ensure absolute stability the Image 44 utilises a heavy pedestal base with die cast aluminium feet, both spikes and rubber feet are supplied. Sharing an identical driver array, the Image 44 and Image 22 centre-channel loudspeaker provide a totally matched home theatre front sound stage. Use Image 12s or Image 44s for surround channel applications, and complete the system with the B1.28 and B1.36 Active subwoofers for an ideal sonic and aesthetic match. All drive units, within the Image 44, are fully shielded. Like all models within the Image series, the Image 44 comes in a high-gloss hand-lacquered black finish. Heavy duty gold plated bi-wiring posts ensure optimum connection.
SPECIFICATIONS.
Applications:
Driver Array:
Frequency Response In-Room:
Sensitivity:
Impedance:
Features:

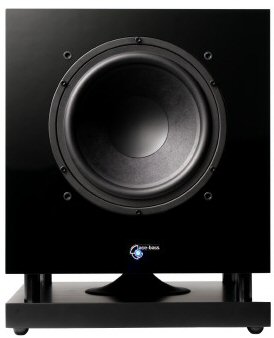

Dimensions: Audio Pro B1.28 Compact 175W Active Subwoofer Designed to compliment the Image series speakers the B1.28 is a small yet powerful active subwoofer capable of enhancing the performance of virtually any speaker. At the heart of the B1.28 is an 8" long-throw front firing bass driver, a 175W ace-bass™ amplifier and a down firing AirFlow 49 bass reflex port. Constructed in two parts the cabinet of the B1.28 is mounted on an open stand which positions the cabinet’s reflex port at the optimum distance to the floor, giving maximum connection to the listening room. A “lens” affixed to the base aids the dispersion of low frequency information within the room. The low pass crossover of the B1.28 is infinitely variable between 50 and 100 Hz, which together with an independent volume control make integration and positioning a straightforward process. Finished in the same high gloss black lacquer as all Image series models the B1.28 is an excellent addition to any Music or Home Theatre system. View back of the B1.28 Subwoofer here.
SPECIFICATIONS.
Applications:
Driver Design:
Frequency Response:
Amplifier Section:
Crossover Control:
Level Control: |
