AUDIO PRO BRAVO FX SERIES LOUDSPEAKERS

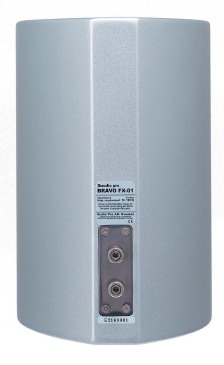

Click on the image below to view the back of the speaker.
|

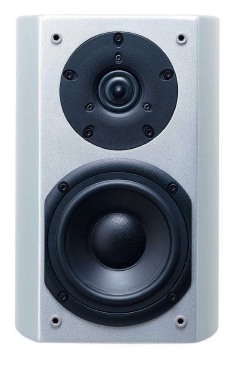

Audio Pro Bravo FX-01 Two Way Monitor Loudspeaker. Super Tweeter
The new Bravo range is an exceptional collection of speakers. Combining advanced acoustic design and driver technologies, the Bravo range reaffirms Audio Pro’s reputation for superior loudspeaker engineering. All models utilise a super-tweeter, capable of reproducing frequencies beyond 42 KHz, endowing each model with an effortlessly refined and transparent presentation.
Although the FX-01 is the smallest model within the range, it is fully capable of reproducing the extended frequency response of SACD and DVD-A recordings. In common with all Bravo models, the FX-01’s internal bracing and a distinctive teardrop-shaped cabinet combine to create an inert structure within which all drive units work efficiently and accurately.
The FX-01 features AudioPro’s high quality fit and finish: each is hand lacquered with eight individual layers to create the deep lustrous finish. Two colours are available; high gloss silver or piano gloss black. Voice matched with all Bravo models, the FX-01 will prove itself equally adept in both stereo and home theatre applications. For even greater dynamic range, the Bravo Sub is the perfect partner for the FX-01.
|
SPECIFICATIONS.
Overview:
Reference Monitor Loudspeaker
Applications:
Home Theatre and Stereo Installations
Driver Array:
Two Way / Two Drivers
Driver Design:
HF 1 x 25mm Super Tweeter. Neodymium Magnet
LF 1 x 131.25mm Twin Voice Coil Woofer
Frequency Response In-Room:
50 Hz – 42 kHz +/- 3 dB
Sensitivity:
87 dB @ 1m
Impedance:
4 Ohm (Nominal)
Placement:
Shelf Mounted
Stand Mounted (Optional)
Features:
Full Magnetic Shielding

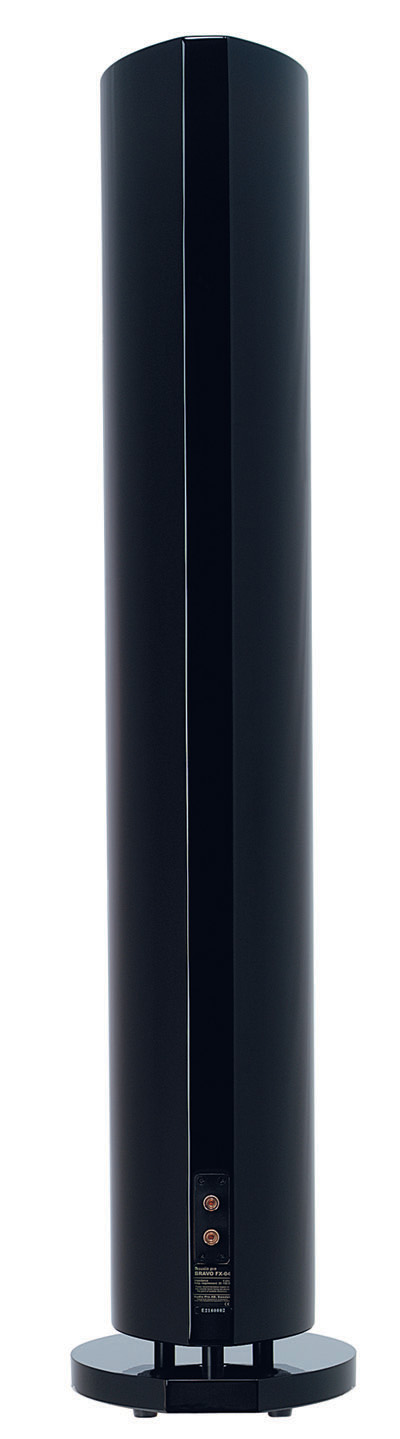

Click on the image below to view the back of the speaker.
|
Audio Pro Bravo FX-04 Floor Standing Loudspeaker.
The FX-04 is a slim and elegant floor-standing loudspeaker, which brings together many elements of AudioPro’s expertise.
As part of the Bravo range, the FX-04 utilises a super-tweeter, capable of reproducing frequencies beyond 42 KHz. In the FX-04, the super-tweeter is combined with two 5 ¼” drive units in a D'Appolito configuration creating a precise, integrated sound field.
Each FX-04 is pedestal mounted with a downward firing AirFlow bass reflex port. Such an arrangement optimises bass control and output within the room. In common with all Bravo models, internal bracing is combined with the distinctive teardrop shape cabinet, creating an inert structure within which all drive units work efficiently and accurately. The teardrop cabinet also helps to eliminate standing waves.
Continuing AudioPro’s tradition of high quality fit and finish, each FX-04 is hand lacquered with eight individual layers to create a deep lustrous finish. Two finishes are available; high gloss silver or piano gloss black. Whether your requirements are for a speaker system which fully exploits high resolution formats such as SACD, or one which delivers the power and precision required for breathtaking home theatre sound, the Bravo FX-04 will prove to be an accomplished performer.
|
SPECIFICATIONS.
Overview:
Reference Floor Standing Loudspeaker
Applications:
Home Theatre and Stereo Installations
Driver Array:
Two Way / Three Drivers
Driver Design:
HF 1 x 25mm Super Tweeter. Neodymium Magnet
LF 2 x 131.25mm Twin Voice Coil Woofers
Frequency Response In-Room:
32 Hz – 42 kHz +/- 3 dB
Sensitivity:
91 dB @ 1m
Impedance:
4 Ohm (Nominal)
Features:
Full Magnetic Shielding

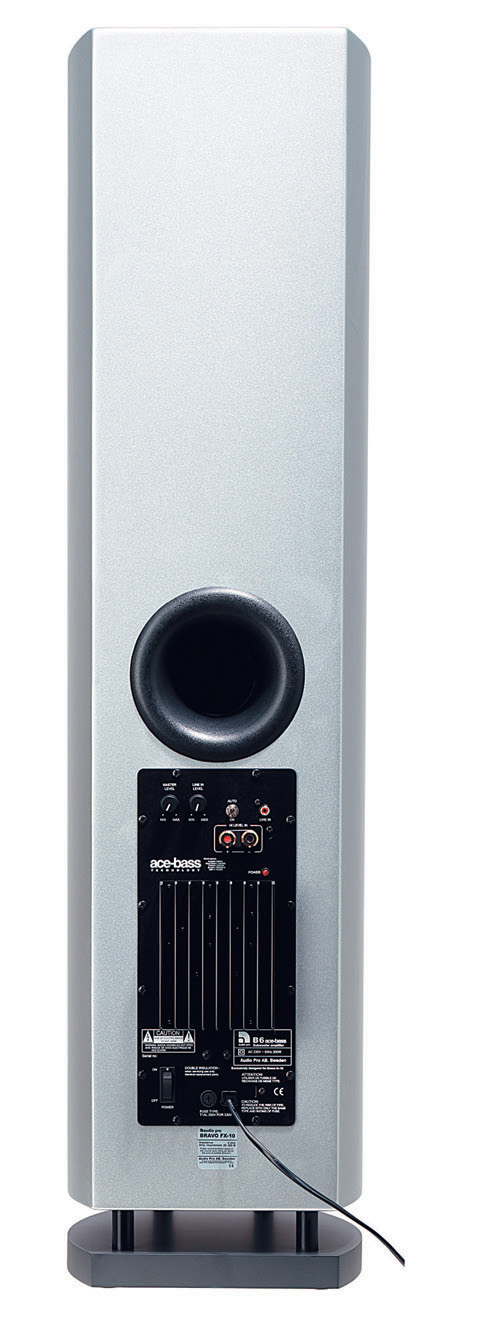

Click on the image below to view the back of the speaker.
|

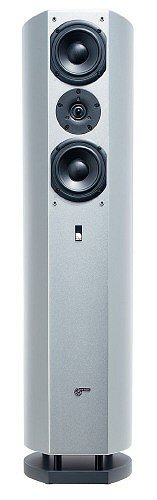

Audio Pro Bravo FX-10 Floor Stand Loudspeaker
As the reference model for the Bravo range, the FX-10 combines every aspect of AudioPro’s expertise and knowledge to create a speaker of exceptional authority and refinement. The FX-10 exploits fully the advantages of Audio Pro’s Ace-Bass technology. Within each FX-10 cabinet resides an 8” long-throw down-firing woofer driven by a 150W amplifier. Independent level controls allow the fine-tuning of both bass extension and LFE information. Such an arrangement allows the FX-10 to extend all the way down to 18 Hz, removing the need for external subwoofers.
At the opposite end of the frequency spectrum, the 1” super-tweeter is combined with two 5 ¼” drive units in a D'Appolito configuration to provide a precise sound field extending all the way up to 42 KHz. The structural integrity of the FX-10 cabinet is assured by quadruple cross bracing, whilst its teardrop shape eliminates standing waves.
In keeping with such engineering, each FX-10 is hand lacquered with eight individually applied layers, creating a deep lustrous finish. Two finishes are available; high gloss silver or piano gloss black. Music, home theatre and multi-channel audio are reproduced with equal refinement and authority by the FX-10, a sophisticated loudspeaker for any environment.
|
SPECIFICATIONS.
Overview:
Reference Floor Standing Loudspeaker
In-Built Active Subwoofers
Applications:
Home Theatre and Stereo Installations
Driver Design:
HF 1 x 25mm Super Tweeter. Neodymium Magnet
LF 2 x 131.25mm Twin Voice Coil Woofers
Subwoofer Driver Design:
LF 1 x 200mm Long Throw Woofer
Down firing / Rear Ported Design
Subwoofer Amplifier:
150W RMS
Ace-Bass Design
Frequency Response In-Room:
18 Hz – 42 kHz +/- 3 dB
Sensitivity:
89 dB @ 1m
Impedance:
4 Ohm (Nominal)
Features:
Full Magnetic Shielding
Master Level Control
Line Level Control
Auto Turn On

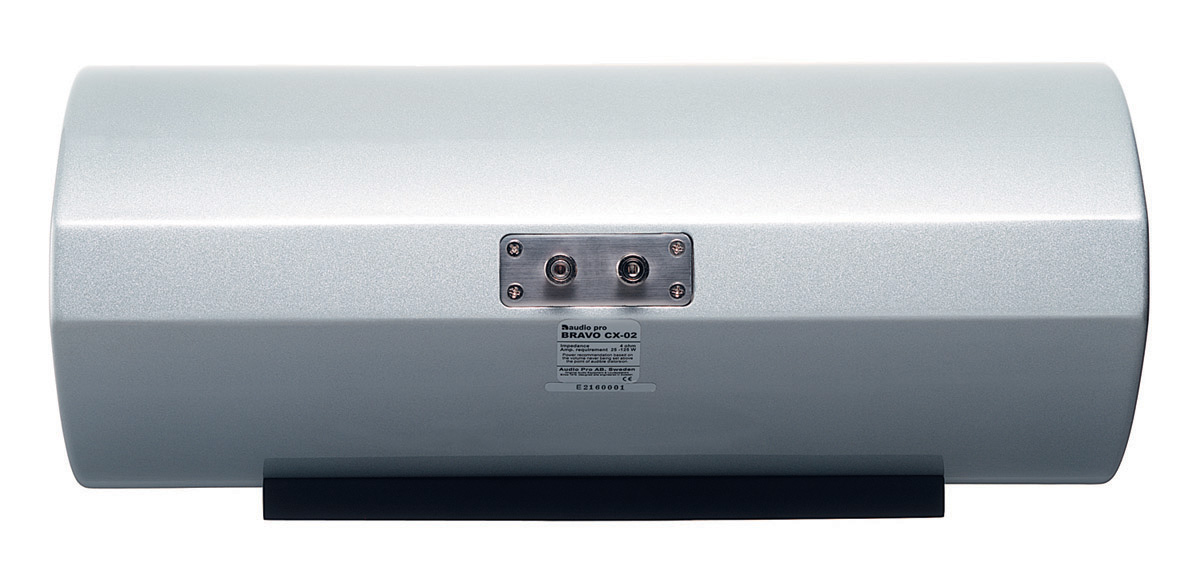

Click on the image below to view the back of the speaker.
|

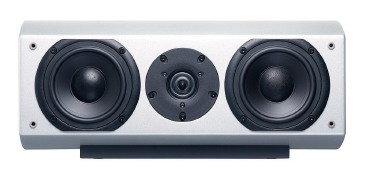

Audio Pro Bravo CX-02 Centre Channel Loudspeaker
The new Bravo range is an exceptional collection of speakers. Combining advanced acoustic design and driver technologies, the Bravo range reaffirms Audio Pro’s reputation for superior loudspeaker engineering. All models utilise a super-tweeter, capable of reproducing frequencies beyond 42 KHz, endowing each model with an effortlessly refined and transparent presentation.
The CX-02 centre channel integrates seamlessly with all Bravo models to create a seamless front soundstage. A 1” super-tweeter, 5 ¼” bass driver and 5 ¼” passive radiator are mounted into the CX-02’s internally braced teardrop-shaped cabinet. This cabinet design not only benefits the CX-02 sonically but also allows the speaker to be angled either up or down towards the listening area when combined with the integral mounting cradle.
As would be expected, all drive units are fully shielded, and heavy-duty gold-plated binding posts ensure optimum connection. The CX-02 features AudioPro’s high quality fit and finish: each is hand lacquered with eight individual layers to create the deep lustrous finish. Two colours are available; high gloss silver or piano gloss black.
|
SPECIFICATIONS.
Overview:
Reference Centre Channel Loudspeaker
Applications:
Home Theatre and Multi-Channel Audio Installations
Driver Array:
Two Way / Three Drivers
Driver Design:
HF 1 x 25mm Super Tweeter. Neodymium Magnet
LF 1 x 131.25mm Twin Voice Coil Woofer
LF 1 x 131.25mm Passive Radiator
Frequency Response In-Room:
45 Hz – 42 kHz +/- 3 dB
Sensitivity:
88 dB @ 1m
Features:
Full Magnetic Shielding
Multi-Angle Pedestal

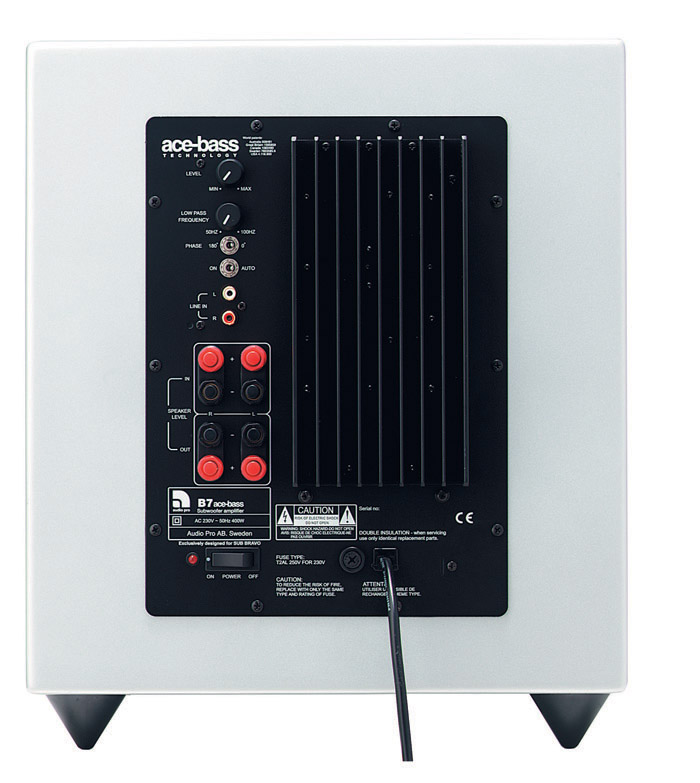

Click on the image below to view the back of the speaker.
|

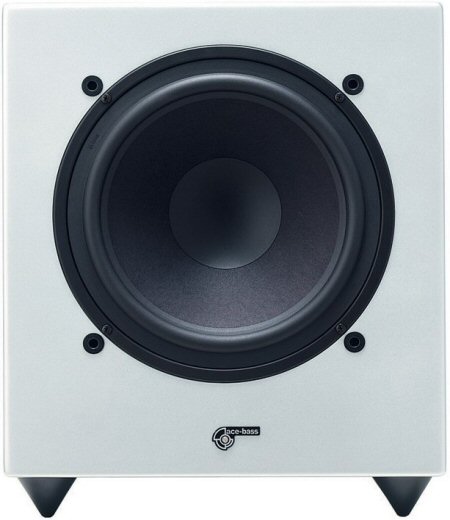

Audio Pro Bravo Active Subwoofer
The Bravo Sub is a classic Audio Pro Ace-Bass active subwoofer.
A specially developed 10” long-throw drive unit is matched with a 400W Ace-Bass amplifier to create a subwoofer of immense bass extension and control. The driver/amp coupling is supported by a specially designed bass reflex port that maximises air-flow while minimising distortion. Seamless integration is aided by an infinitely variable low-pass crossover filter and 0-180 degree phase adjustment.
Continuing AudioPro’s tradition of high quality fit and finish, each Bravo Sub is hand lacquered with eight individual layers to create a deep lustrous finish. Two finishes are available; high gloss silver or piano gloss black.
|
SPECIFICATIONS.
Overview: High Power Active Subwoofer
Applications:
Home Theatre and Stereo Installations
Driver Design:
LF 1 x 250mm Long Throw Bass Driver
Frequency response:
23Hz to 100Hz
Amplifier Section:
Output power: 400W rms
Ace Bass Design
Crossover Control:
Continuously Variable from 50 to 100Hz
24dB per octave
Level Control:
Continuously Variable
Phase Control:
Continuously Variable
0 - 180°
Line Level Inputs:
1 x Stereo (RCA)
Speaker Level Inputs:
1 x Stereo
Speaker Level Outputs:
1 x Stereo
High Pass Filter 100Hz - 6db Per Octave
Features:
Auto-On (Signal Sensing)
Finish:
High Gloss Silver
Dimensions:
W 35cm x H 38cm x D 35cm
|
